Description
75W Single Output Industrial DIN RAIL Power Supply 24 Volts 3.2 Amps Features • High efficiency 89% and low power dissipation • 150% peak load capability • Protections: Short circuit / Overload / Over voltage / Over temperature • Cooling by free air convection • Can be installed on DIN Rail TS-35/7.5 or 15 • UL 508 (industrial control equipment) approved • EN61000-6-2(EN50082-2) industrial immunity level • 100% full load burn-in test • 3 years warranty Detailed Specifications: • Primary Output Voltage (VDC): 24 • Output Current (A): 3.2 • Maximum Output Power (W): 76.8 • Family: SDR-75 • Input Voltage (VAC): 88 to 264 • Input Frequency: 47 to 63 • Maximum Input Current (A): 1.4 • Output Connector Type: Screw Terminal • Efficiency (%): 89 • Operating Temperature-Min (Cell): -30 • Operating Temperature-Max (Cell): 70 • Length (inch): 1.26 • Width (inch): 4.93 • Height (inch): 4.02 • Agency Approvals: UL/CUL/TUV/CB/CE • Color: Silver • Style: DIN.

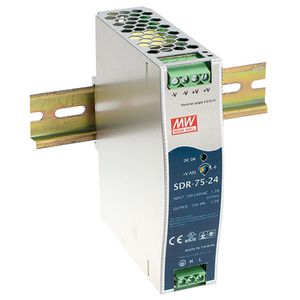

MEAN WELL SDR-75-24 Single Output Industrial DIN Rail Power Supply
Price is below average
Current Price
$28.9
Average
$42.76
Min Price
$24.96
Max Price
$54.6
Price dynamics
32%
Description
75W Single Output Industrial DIN RAIL Power Supply 24 Volts 3.2 Amps Features • High efficiency 89% and low power dissipation • 150% peak load capability • Protections: Short circuit / Overload / Over voltage / Over temperature • Cooling by free air convection • Can be installed on DIN Rail TS-35/7.5 or 15 • UL 508 (industrial control equipment) approved • EN61000-6-2(EN50082-2) industrial immunity level • 100% full load burn-in test • 3 years warranty Detailed Specifications: • Primary Output Voltage (VDC): 24 • Output Current (A): 3.2 • Maximum Output Power (W): 76.8 • Family: SDR-75 • Input Voltage (VAC): 88 to 264 • Input Frequency: 47 to 63 • Maximum Input Current (A): 1.4 • Output Connector Type: Screw Terminal • Efficiency (%): 89 • Operating Temperature-Min (Cell): -30 • Operating Temperature-Max (Cell): 70 • Length (inch): 1.26 • Width (inch): 4.93 • Height (inch): 4.02 • Agency Approvals: UL/CUL/TUV/CB/CE • Color: Silver • Style: DIN.
