Traxxas 7971 Aton Anti-Vibration Camera/Gimbal Mount

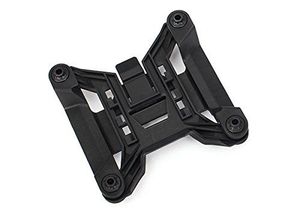

The 2-axis gimbal is available as an accessory for Aton, and is included with Aton Plus. The gimbal comes mounted on a bracket and attaches the same way as the fixed mount. Wrap the gimbal wiring through the harness and plug it into the power port on the bottom of Aton. Attach the bracket to the front landing gear by aligning the tabs and sliding it back until the tabs snap into place. Press the tab to remove the camera frame. Slide your action camera into the frame so that the record button is still accessible. Now securely attach the frame and camera onto the gimbal base. Remove the foam lock from the gimbal, allowing it to move freely, but don't discard the lock as you'll want to use it while storing the gimbal. Make sure Aton is on a level surface and power the model on. The LED on the bottom of the gimbal will light solid red as the gimbal initializes and sets to the neutral positi
