TRIAD MAGNETICS VPP20-500 POWER TRANSFORMER (1 piece)

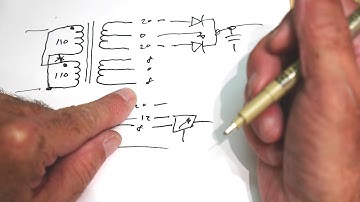

okay let's talk about transformers this is a schematic diagram for a transformer transformer is some iron with windings on it and introduces a magnetic field so the electricity gets turned into magnetism magazine Tizen gets turned back into electricity so anyway this is what this transformer that I've just built has in it it's got primary windings which are on the left side usually and secondary windings which are on the right side but could be either way so this is a transformer that allows you to do either 110 volts or 220 volts so this winding is 110 volt and this winding is 110 volt winding so if you put a short here and you connect your wires to the outlet here it acts the transformer will act the way it should for 220 volts you have these both in series and if you want to use it as a hundred and ten volts then what you need to do is you need to not connect these two but you need t
