Add global 3G/2G connectivity and GPS tracking to your project!

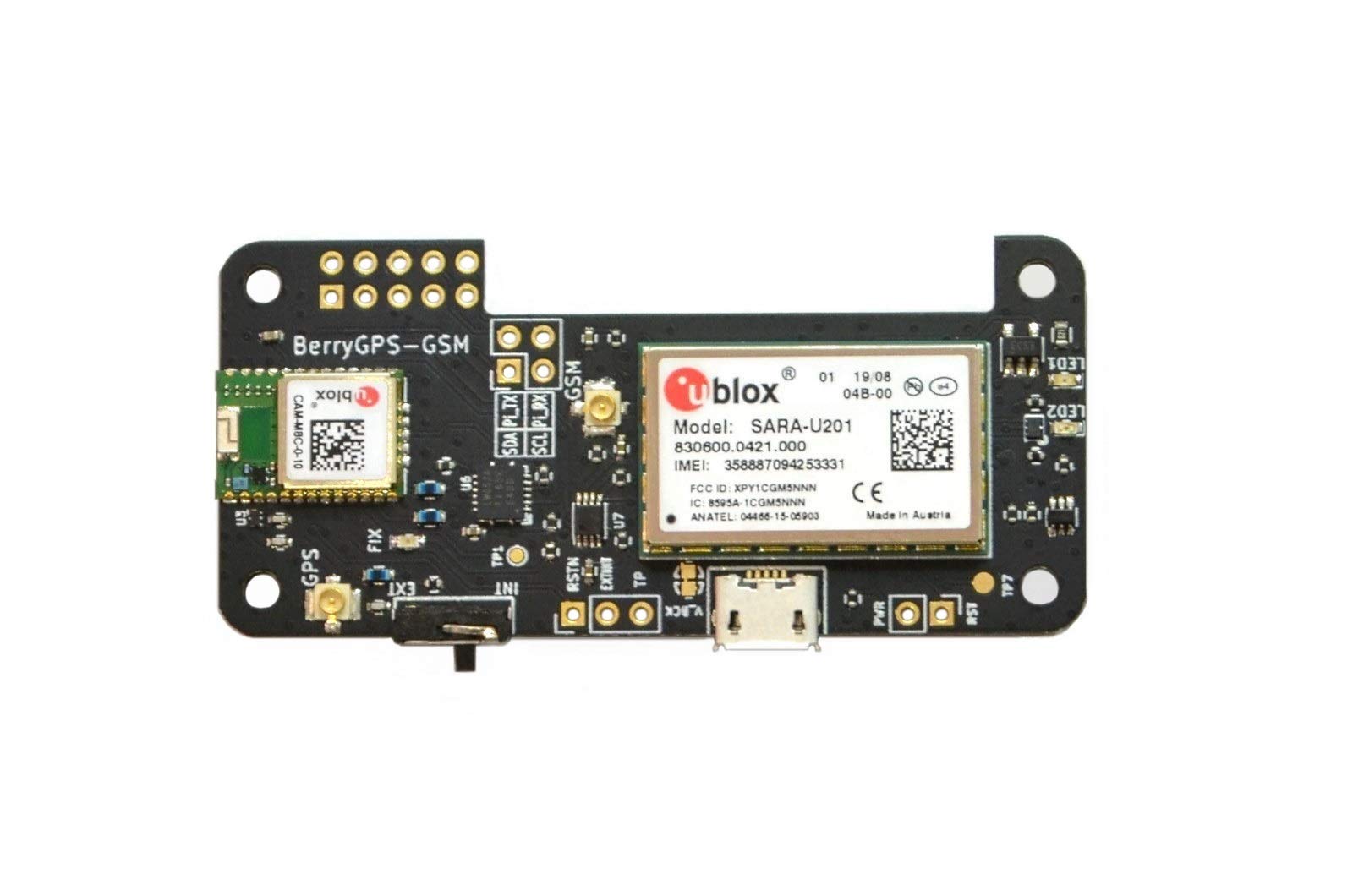

The two main components that make this board great are;

• uBlox CAM-M8 GPS module (The same GPS found on BerryGPS-IMU)
• uBlox SARA-U201 GSM for GSM connectivity, which has global coverage.

Both of these modules working together results in obtaining a GPS fix in secs, using assisted GPS.

GPS Features;

Built in antenna:Includes a builtin GPS antenna.
SupCap: The SuperCap keeps the phemeris data stored in the battery backup RAM for 4 hours. This allows for faster acquisitions when power cycled.
Fix and PPS indicator: LED and PPS pins.
3 concurrent GNSS: Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou).
GPS Update rate: Single GNSS - up to 18Hz, Dual GNSS up to 10Hz.
Connection for external antenna: BerryGPS-GSM also includes a uFL connector for an external GPS antenna, which can be used when BerryGPS-GSM doesn't have clear access to the sky.

3G/2G Cellular Modem Features;

The modem on BerryGPS-GSM is the SARA-U201 modem from uBlox.

Global 2G/3G coverage

• 2G Bands: 850, 900, 1800, 1900
• 3G Bands: 800, 850, 900, 1900, 2100

GSM Antenna

A quad band GSM antenna is included

What is included;

• 1 x BerryGPS-GSM
• 1 x Hologram SIM
• 1 x USB-to-USB PCB connector
• 1 x Micro USB to Right Angle USB A cable
• 1 x GSM quad band GSM antenna
• 4 x Standoff and screws
• 1 x Female header

External GPS Antenna and Pi not included
