Description

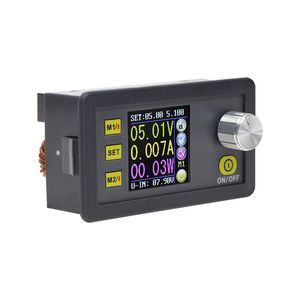

Pattern Name: Numerical Control DC 6-55V to 0-50V 5A Step Down Stabilized Power Supply
Features:
Input voltage: 6-55V
Output voltage: 0V-50.00V
Output current: 0-5.000A
Output power: 0-250W
Weight: 113g
Size: 79 x 43 x 48mm
Cutting size: 71 x 39mm
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: +/- (0.5% + 1 digit)
Output Current accuracy: +/- (0.5% + 2 digits)
Note: Input voltage must 1.1 times higher than the output voltage.
When large current circumstances, pay attention to heat elimination.
Wiring:
IN+: Input positive
IN-: Input negative
OUT+: Output positive
OUT-: Output negative
Note: Input voltage maximum is 55V, if input is greater than this limit may damage the meter.
Do not use the meter in AC power supply, and wiring should be exactly the same as the wiring diagram, or else it will cause damage.
For Buck Boost Converter, please check ASIN: B07GVK911F, B07GVJ3J8M
Package Including:
1pcs Numerical Control DC 6-55V to 0-50V 5A Step Down Stabilized Power Supply
Features:
Input voltage: 6-55V
Output voltage: 0V-50.00V
Output current: 0-5.000A
Output power: 0-250W
Weight: 113g
Size: 79 x 43 x 48mm
Cutting size: 71 x 39mm
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: +/- (0.5% + 1 digit)
Output Current accuracy: +/- (0.5% + 2 digits)
Note: Input voltage must 1.1 times higher than the output voltage.
When large current circumstances, pay attention to heat elimination.
Wiring:
IN+: Input positive
IN-: Input negative
OUT+: Output positive
OUT-: Output negative
Note: Input voltage maximum is 55V, if input is greater than this limit may damage the meter.
Do not use the meter in AC power supply, and wiring should be exactly the same as the wiring diagram, or else it will cause damage.
For Buck Boost Converter, please check ASIN: B07GVK911F, B07GVJ3J8M
Package Including:
1pcs Numerical Control DC 6-55V to 0-50V 5A Step Down Stabilized Power Supply
UCTRONICS Numerical Control DC 6-55V to 0-50V 5A Step Down Stabilized Power Supply Constant Voltage Current Buck Power Converter Power Supply Adjustable Module
Current Price
$35.98
Average
$35.11
Min Price
$28.99
Max Price
$35.98
Price dynamics
2%
Description
Pattern Name: Numerical Control DC 6-55V to 0-50V 5A Step Down Stabilized Power Supply
Features:
Input voltage: 6-55V
Output voltage: 0V-50.00V
Output current: 0-5.000A
Output power: 0-250W
Weight: 113g
Size: 79 x 43 x 48mm
Cutting size: 71 x 39mm
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: +/- (0.5% + 1 digit)
Output Current accuracy: +/- (0.5% + 2 digits)
Note: Input voltage must 1.1 times higher than the output voltage.
When large current circumstances, pay attention to heat elimination.
Wiring:
IN+: Input positive
IN-: Input negative
OUT+: Output positive
OUT-: Output negative
Note: Input voltage maximum is 55V, if input is greater than this limit may damage the meter.
Do not use the meter in AC power supply, and wiring should be exactly the same as the wiring diagram, or else it will cause damage.
For Buck Boost Converter, please check ASIN: B07GVK911F, B07GVJ3J8M
Package Including:
1pcs Numerical Control DC 6-55V to 0-50V 5A Step Down Stabilized Power Supply
Features:
Input voltage: 6-55V
Output voltage: 0V-50.00V
Output current: 0-5.000A
Output power: 0-250W
Weight: 113g
Size: 79 x 43 x 48mm
Cutting size: 71 x 39mm
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: +/- (0.5% + 1 digit)
Output Current accuracy: +/- (0.5% + 2 digits)
Note: Input voltage must 1.1 times higher than the output voltage.
When large current circumstances, pay attention to heat elimination.
Wiring:
IN+: Input positive
IN-: Input negative
OUT+: Output positive
OUT-: Output negative
Note: Input voltage maximum is 55V, if input is greater than this limit may damage the meter.
Do not use the meter in AC power supply, and wiring should be exactly the same as the wiring diagram, or else it will cause damage.
For Buck Boost Converter, please check ASIN: B07GVK911F, B07GVJ3J8M
Package Including:
1pcs Numerical Control DC 6-55V to 0-50V 5A Step Down Stabilized Power Supply
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
