Description
Image Sensor: 1/3" Progressive Scan CMOS
Effective Pixels: 1290(H)x1080 (V)
Support:WDR
Digital Zoom:16X
Focal Length:2.8-12mm,4x
Angle of View:105-33.5 degree(Wide-Tele)
Pan Range:0-350°
Tilt Range:0-90°
PTZ position display:ON/OFF
Alarm input:1-ch
Alarm output:1-ch
Alarm Actions:preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
Audio Input: 1 Mic in/Line in interface,Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface,
Line level, impedance: 600Ω
Max.Image Resolution: 1290X1080
Image Compression: H.264 / MJPEG
No. of Simultaneous Users: Up to 20 users
Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
EZVIZ: Support
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200 Web Browser: IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Menu Language: English
Power Supply: 12V DC or PoE(Power over Ethernet)
Power Consumption: Max. 8W
Working Temperature/Humidity: -30°C ~ 65°C (-22°F ~ 149°F)
Protection Level: IP66 standard (outdoor dome),TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions: Φ140.7×107.2mm
Weight (approx.): 950g
Mount Option: Wall mount: DS-1273ZJ -PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ -PT6(Original packing do not include these mounts)
Effective Pixels: 1290(H)x1080 (V)
Support:WDR
Digital Zoom:16X
Focal Length:2.8-12mm,4x
Angle of View:105-33.5 degree(Wide-Tele)
Pan Range:0-350°
Tilt Range:0-90°
PTZ position display:ON/OFF
Alarm input:1-ch
Alarm output:1-ch
Alarm Actions:preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
Audio Input: 1 Mic in/Line in interface,Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface,
Line level, impedance: 600Ω
Max.Image Resolution: 1290X1080
Image Compression: H.264 / MJPEG
No. of Simultaneous Users: Up to 20 users
Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
EZVIZ: Support
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200 Web Browser: IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Menu Language: English
Power Supply: 12V DC or PoE(Power over Ethernet)
Power Consumption: Max. 8W
Working Temperature/Humidity: -30°C ~ 65°C (-22°F ~ 149°F)
Protection Level: IP66 standard (outdoor dome),TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions: Φ140.7×107.2mm
Weight (approx.): 950g
Mount Option: Wall mount: DS-1273ZJ -PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ -PT6(Original packing do not include these mounts)

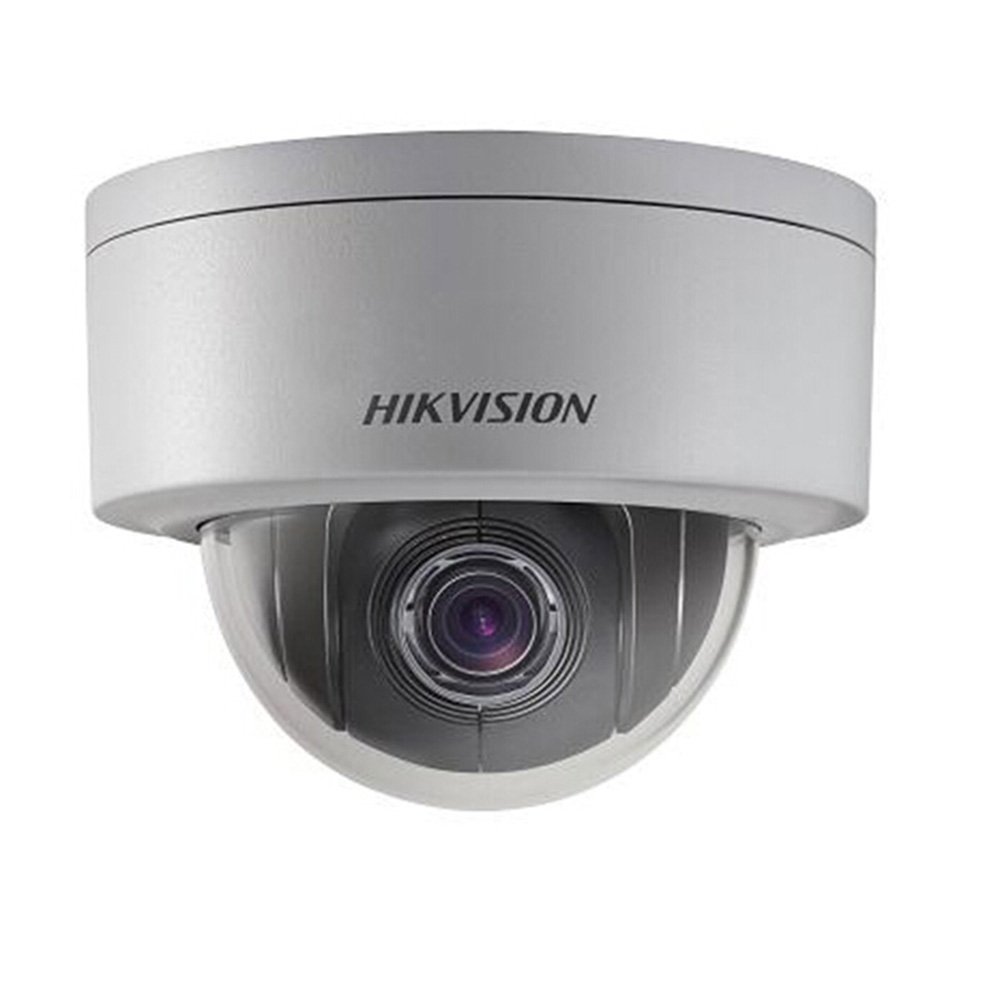

Upgradable original English firmware Hikvision DS-2DE3204W-DE 2MP DWDR Network P&P Mini PTZ Dome Camera POE IP66 outside 4X ONVIF
Price is below average
Current Price
$239
Average
$245
Min Price
$239
Max Price
$256
Price dynamics
2%
Description
Image Sensor: 1/3" Progressive Scan CMOS
Effective Pixels: 1290(H)x1080 (V)
Support:WDR
Digital Zoom:16X
Focal Length:2.8-12mm,4x
Angle of View:105-33.5 degree(Wide-Tele)
Pan Range:0-350°
Tilt Range:0-90°
PTZ position display:ON/OFF
Alarm input:1-ch
Alarm output:1-ch
Alarm Actions:preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
Audio Input: 1 Mic in/Line in interface,Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface,
Line level, impedance: 600Ω
Max.Image Resolution: 1290X1080
Image Compression: H.264 / MJPEG
No. of Simultaneous Users: Up to 20 users
Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
EZVIZ: Support
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200 Web Browser: IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Menu Language: English
Power Supply: 12V DC or PoE(Power over Ethernet)
Power Consumption: Max. 8W
Working Temperature/Humidity: -30°C ~ 65°C (-22°F ~ 149°F)
Protection Level: IP66 standard (outdoor dome),TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions: Φ140.7×107.2mm
Weight (approx.): 950g
Mount Option: Wall mount: DS-1273ZJ -PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ -PT6(Original packing do not include these mounts)
Effective Pixels: 1290(H)x1080 (V)
Support:WDR
Digital Zoom:16X
Focal Length:2.8-12mm,4x
Angle of View:105-33.5 degree(Wide-Tele)
Pan Range:0-350°
Tilt Range:0-90°
PTZ position display:ON/OFF
Alarm input:1-ch
Alarm output:1-ch
Alarm Actions:preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
Audio Input: 1 Mic in/Line in interface,Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface,
Line level, impedance: 600Ω
Max.Image Resolution: 1290X1080
Image Compression: H.264 / MJPEG
No. of Simultaneous Users: Up to 20 users
Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
EZVIZ: Support
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200 Web Browser: IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Menu Language: English
Power Supply: 12V DC or PoE(Power over Ethernet)
Power Consumption: Max. 8W
Working Temperature/Humidity: -30°C ~ 65°C (-22°F ~ 149°F)
Protection Level: IP66 standard (outdoor dome),TVS 4,000V lightning protection, surge protection and voltage transient protection
Dimensions: Φ140.7×107.2mm
Weight (approx.): 950g
Mount Option: Wall mount: DS-1273ZJ -PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ -PT6(Original packing do not include these mounts)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
hey guys in this video I'm going to be unboxing and reviewing this hikvision mini PT's dated camera I'm very excited to be presenting this camera today this is a step above all the other cameras I've been showing on this channel more of a professional-grade camera it's a PTZ camera which means pan tilt and zoom meaning you can mechanically move the camera back and forth up and down and zoom in and out this is an outdoor camera and it cost roughly one hundred and fifty dollars American almost 200 Canadian but not North American version of this camera is available on the great market for a little bit cheaper but it may not be upgradeable I don't mind purchasing these as they are top quality just like all the ink vision products so inside the box we have a drone template manual and the disc always download the latest from the website of course there are some mounting screws for mounting sc
