Description

Technical Parameter
● Display: 2.8 inch TFT (320 x240)
●RF output: 0dbm (±2dbm)
●Port SWR: < 1.1
● Display: 2.8 inch TFT (320 x240)
● Size: 54mm x 85.5mm x 11mm
●Weight: 63 grams
● PCB: 50mm x 68mm x 10mm (without connector, lever switch)
● Measurement frequency:10KHz ~ 1.5GHz
● Measurement range: 70dB (50kHz-300 MHz), 60dB (300M-900MHz, 40dB (900M-1.5GHz
● USB interface: USB tyoe-C communication mode: CDC (serial)
● Power: USB 5V 120mA, can use battery powered, maximum charging current 300mA (battery included )
● Number of scanning points: 101 (fixed)
● Display Tracking: 4, Marking: 4, Setting Save: 5

Package List
1x NanoVNA Host (with 650mAh battery)
1x USB Type-C Cable
1x Type C- Type C Cable
2x 30mm SMA Male to Male RG174 RF Cable
1x SMA Simple Calibration Kit
1x SMA Female to Female Connector

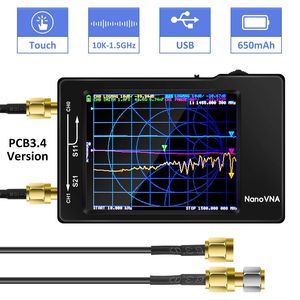

【Upgraded】AURSINC Vector Network Analyzer 10KHz -1.5GHz HF VHF UHF Antenna Analyzer Measuring S Parameters, Voltage Standing Wave Ratio, Phase, Delay, Smith Chart(Latest Version REV3.4)
