Description
Features:
Mini-wide voltage DC motor governor, using the latest low-voltage drive technology.
With high voltage and high current self recovery fuse.
The fuse is automatically cut off over-flow.
And the fuse is automatically recovered after power failure for several seconds, almost no need to change fuse.
Adjusting the potentiometer knob can change the duty cycle of the governor and change the speed of the motor.
Suitable for water heater tune thermal, lighting dimmer, small motor speed, etc.
Descriptions:
Can not directly connect to AC.
Fine workmanship, stable performance.
Mini size, very convenient to use.
Specifications:
Working voltage: DC4.5V-25V
Output: 0-5A 90W
PWM duty cycle: 1%-100%
PWM frequency: 20KHz
Material:electronic components
Size: 30.5*26.5*13.5mm
Color: multicolor
Package included:
1 x PWM DC Motor Governor
Notes:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.Thanks!
Mini-wide voltage DC motor governor, using the latest low-voltage drive technology.
With high voltage and high current self recovery fuse.
The fuse is automatically cut off over-flow.
And the fuse is automatically recovered after power failure for several seconds, almost no need to change fuse.
Adjusting the potentiometer knob can change the duty cycle of the governor and change the speed of the motor.
Suitable for water heater tune thermal, lighting dimmer, small motor speed, etc.
Descriptions:
Can not directly connect to AC.
Fine workmanship, stable performance.
Mini size, very convenient to use.
Specifications:
Working voltage: DC4.5V-25V
Output: 0-5A 90W
PWM duty cycle: 1%-100%
PWM frequency: 20KHz
Material:electronic components
Size: 30.5*26.5*13.5mm
Color: multicolor
Package included:
1 x PWM DC Motor Governor
Notes:
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.Thanks!

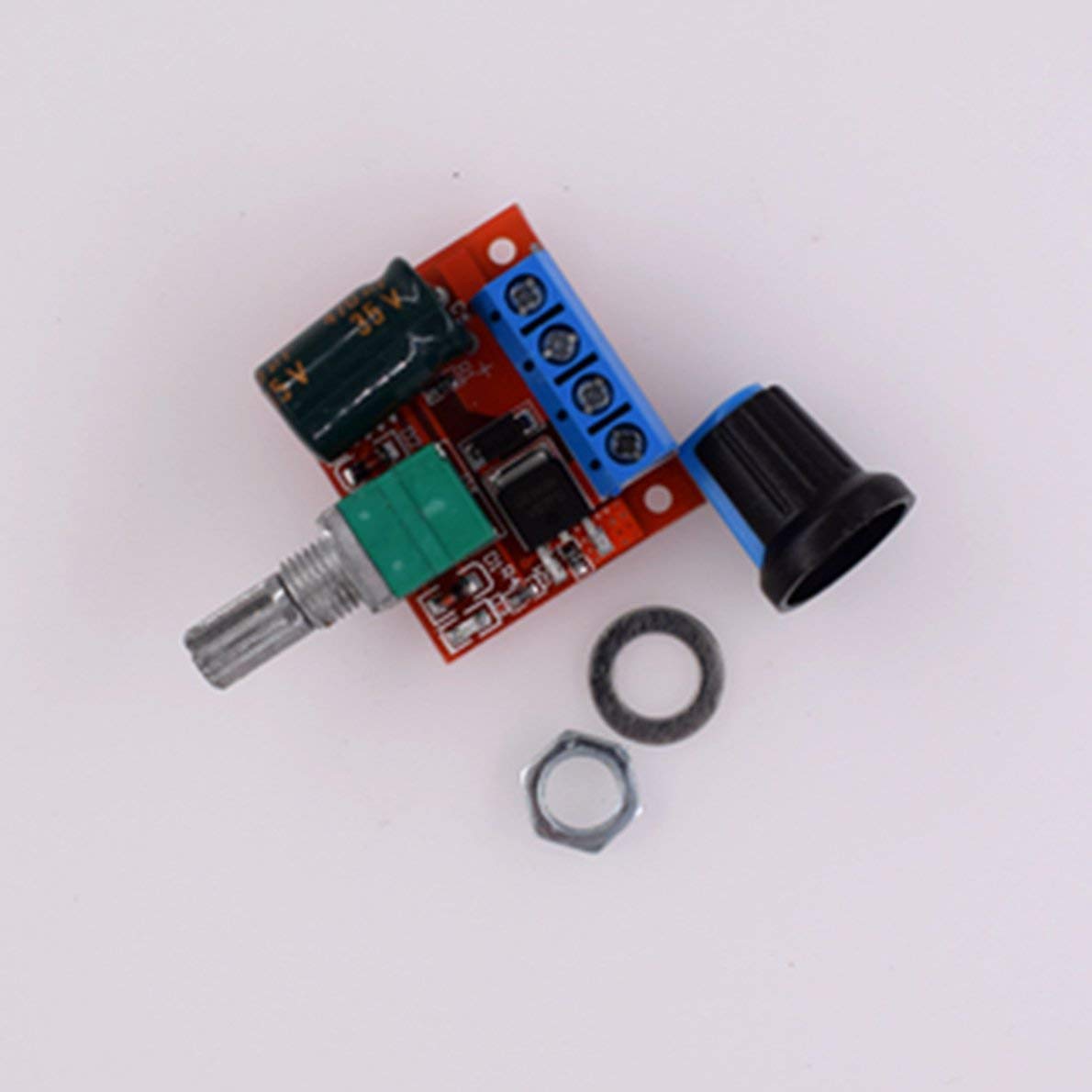

Uqiangbao Fit HW-687 PWM DC Motor Speed Governor 5V-25V Speed Regulation Switch Controller 5A Switch Function Small LED Dimmer Module
Current Price
$0.99
Average
$0.99
Min Price
$0.99
Max Price
$0.99
