Description
Specifications:
Model: 7D471K
Max. Allowable Voltage: AC 300V; DC 385V
Varistor Voltage: 470V ±10%
Max. Clamping Voltage (8/20 μS): 775V; Max. Clamping Current (8/20 μS): 10A
Max. Peak Current (8/20 μS) : 1200A
Rated Power: 0.25W; Max. Energy: 30J
Typical Capacitance : 101pF (1kHz)
Lead Type: Straight
Lead Size: 24 x 0.6mm / 0.94" x 0.02" (L*D); Lead Spacing : 5.08mm / 0.2"
Body Size: 8 x 3mm / 0.31" x 0.12" (D*T)
Temperature Coefficient: PTC; Fit Climate Type: 40/85/21
Material: Epoxy, ZnO; Color: Blue
Package Content: 10 x Voltage Dependent Resistors
Descriptions:
1.Specific epoxy coated disc construction with radial leads, long life use.
2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.
3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode.
4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits from damage.
5.Widely used in power supply, industrial equipment, lighting products, automotive electronics and home appliance etc.
Model: 7D471K
Max. Allowable Voltage: AC 300V; DC 385V
Varistor Voltage: 470V ±10%
Max. Clamping Voltage (8/20 μS): 775V; Max. Clamping Current (8/20 μS): 10A
Max. Peak Current (8/20 μS) : 1200A
Rated Power: 0.25W; Max. Energy: 30J
Typical Capacitance : 101pF (1kHz)
Lead Type: Straight
Lead Size: 24 x 0.6mm / 0.94" x 0.02" (L*D); Lead Spacing : 5.08mm / 0.2"
Body Size: 8 x 3mm / 0.31" x 0.12" (D*T)
Temperature Coefficient: PTC; Fit Climate Type: 40/85/21
Material: Epoxy, ZnO; Color: Blue
Package Content: 10 x Voltage Dependent Resistors
Descriptions:
1.Specific epoxy coated disc construction with radial leads, long life use.
2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.
3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode.
4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits from damage.
5.Widely used in power supply, industrial equipment, lighting products, automotive electronics and home appliance etc.

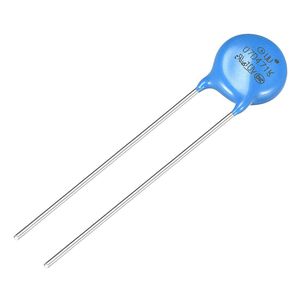

uxcell 10Pcs Voltage Dependent Resistors AC 300V 7D471K Radial Lead Disc Varistors
Current Price
$4.69
Average
$4.69
Min Price
$4.69
Max Price
$4.69
Description
Specifications:
Model: 7D471K
Max. Allowable Voltage: AC 300V; DC 385V
Varistor Voltage: 470V ±10%
Max. Clamping Voltage (8/20 μS): 775V; Max. Clamping Current (8/20 μS): 10A
Max. Peak Current (8/20 μS) : 1200A
Rated Power: 0.25W; Max. Energy: 30J
Typical Capacitance : 101pF (1kHz)
Lead Type: Straight
Lead Size: 24 x 0.6mm / 0.94" x 0.02" (L*D); Lead Spacing : 5.08mm / 0.2"
Body Size: 8 x 3mm / 0.31" x 0.12" (D*T)
Temperature Coefficient: PTC; Fit Climate Type: 40/85/21
Material: Epoxy, ZnO; Color: Blue
Package Content: 10 x Voltage Dependent Resistors
Descriptions:
1.Specific epoxy coated disc construction with radial leads, long life use.
2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.
3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode.
4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits from damage.
5.Widely used in power supply, industrial equipment, lighting products, automotive electronics and home appliance etc.
Model: 7D471K
Max. Allowable Voltage: AC 300V; DC 385V
Varistor Voltage: 470V ±10%
Max. Clamping Voltage (8/20 μS): 775V; Max. Clamping Current (8/20 μS): 10A
Max. Peak Current (8/20 μS) : 1200A
Rated Power: 0.25W; Max. Energy: 30J
Typical Capacitance : 101pF (1kHz)
Lead Type: Straight
Lead Size: 24 x 0.6mm / 0.94" x 0.02" (L*D); Lead Spacing : 5.08mm / 0.2"
Body Size: 8 x 3mm / 0.31" x 0.12" (D*T)
Temperature Coefficient: PTC; Fit Climate Type: 40/85/21
Material: Epoxy, ZnO; Color: Blue
Package Content: 10 x Voltage Dependent Resistors
Descriptions:
1.Specific epoxy coated disc construction with radial leads, long life use.
2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.
3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode.
4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits from damage.
5.Widely used in power supply, industrial equipment, lighting products, automotive electronics and home appliance etc.
