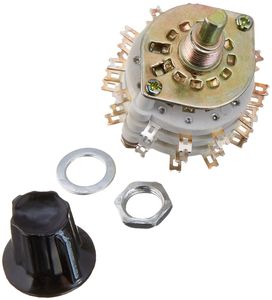

Uxcell 3P11T 3 Pole 11 Throw Band Channel TV Rotary Switch Selector

[Music] at all quick little tip for you when you're working on these old schematics that have these multi way for switches in which a bit of a nightmare when you're trying to figure out when it's in a certain position where it it goes off to so what I tend to do is I tend to get a piece of tracing paper or in this case this is just a bit of greaseproof paper which you can see you can put over and you can trace the switch like so you don't have to be perfect it's just to give you a rough guide of what's happening when you rotate the switch okay so as you can see we've got a rough copy of that of that and if we put that over it now and we look we can see at the moment we've got pin 1 because pin 1 is along the pin which is always connected and pin 6 is connected at the moment when it's in that position so if we now rotate this when we rotate it one we can now see that pin number 10 then p
