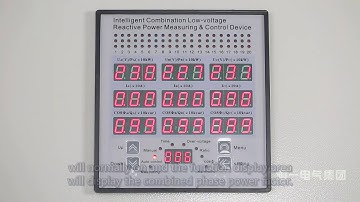

[Music] sample demonstration for 580 controller hello thank you for choice 580 controller firstly let's take a look at the wiring of 580 controller respectively connect the six terminals of the distribution current with the three primary current transformers which pass through phase a phase b and phase c of the main inlet cabinet to sample the current signal respectively connect the six terminals of the capacitor current with the three primary current transformers which passing through phase a phase b and phase c of the compensation cabinet to measure the capacitor compensation current respectively connect the wiring terminals of power supply with phase a phase b phase c and phase n of the compensation cabinet rs-485 communication port connect rs-485 communication wires with the intelligent capacitor and at this time the wiring is completed well now let's take a look at the front panel
