Description

Product Features:
Product Name : Quick Fittings
Model : PC10-02
Net Weight : 65g
Color : Gold Tone,Blue
Material : Plastic,Brass
Thread Size : 1/4" G
Tube Size (OD) : 25/64" / 10mm
Type: Male Straight Thread Connector
Thread Tube Inner Hole Type : Hex Type
Operating Pressure : 0-9MPa
Operating temperature：0 - 60 Degree Celsius
Dimension : 25mm x 17mm / 0.98-inch x 0.67-inch (L x W )

Package Content:
6 pcs x Quick Fittings

Description:
1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.
2.Push-to-connect tube connection on one end and male G threads on the other end.
3.A good release cap can withstand greater and stronger pressure without tripping.
4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
5.Elliptical release ring help to connect tube easily by manual, no special tools required.
6.Outside (and Inside where applicable) hexagonal wrench tightening.

Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

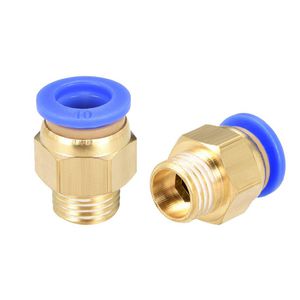

uxcell Straight Pneumatic Push to Quick Connect Fittings G 1/4" Male x 10mm Tube OD 6pcs

Price is below average

Current Price

$8.45

Average

$8.65

Min Price

$7.45

Max Price

$10.19

Price dynamics

2%

Description

Product Features:
Product Name : Quick Fittings
Model : PC10-02
Net Weight : 65g
Color : Gold Tone,Blue
Material : Plastic,Brass
Thread Size : 1/4" G
Tube Size (OD) : 25/64" / 10mm
Type: Male Straight Thread Connector
Thread Tube Inner Hole Type : Hex Type
Operating Pressure : 0-9MPa
Operating temperature：0 - 60 Degree Celsius
Dimension : 25mm x 17mm / 0.98-inch x 0.67-inch (L x W )

Package Content:
6 pcs x Quick Fittings

Description:
1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.
2.Push-to-connect tube connection on one end and male G threads on the other end.
3.A good release cap can withstand greater and stronger pressure without tripping.
4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
5.Elliptical release ring help to connect tube easily by manual, no special tools required.
6.Outside (and Inside where applicable) hexagonal wrench tightening.

Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
