Description

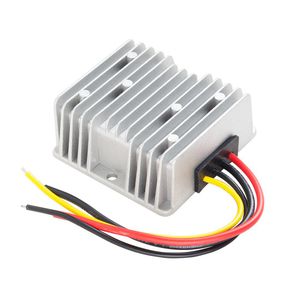

Product Name: Waterproof Voltage Converter Regulator DC 10V-32V to DC 24V 6A 144W
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, ultra compact size, light weight.
3. Industry grade DC10-32V to DC 24V converter, efficiency up to 90%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications:
* Input Rated Voltage: DC 12V/24V
* Input Voltage Range: 10-32V DC
* Output voltage: DC24V 6A
* Output Rated Power: 144W
* Efficiency: 90% (half load); 86% (full load)
* Output Peak Power: 180W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 150mV
* No-load Current: 20mA
* Total Size: 74*74*32mm(L*W*H)
* Weight: 300g
Package included:
1 x DC 10-32V to DC 24V 6A Voltage Converter
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, ultra compact size, light weight.
3. Industry grade DC10-32V to DC 24V converter, efficiency up to 90%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours.
6. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications:
* Input Rated Voltage: DC 12V/24V
* Input Voltage Range: 10-32V DC
* Output voltage: DC24V 6A
* Output Rated Power: 144W
* Efficiency: 90% (half load); 86% (full load)
* Output Peak Power: 180W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 150mV
* No-load Current: 20mA
* Total Size: 74*74*32mm(L*W*H)
* Weight: 300g
Package included:
1 x DC 10-32V to DC 24V 6A Voltage Converter
