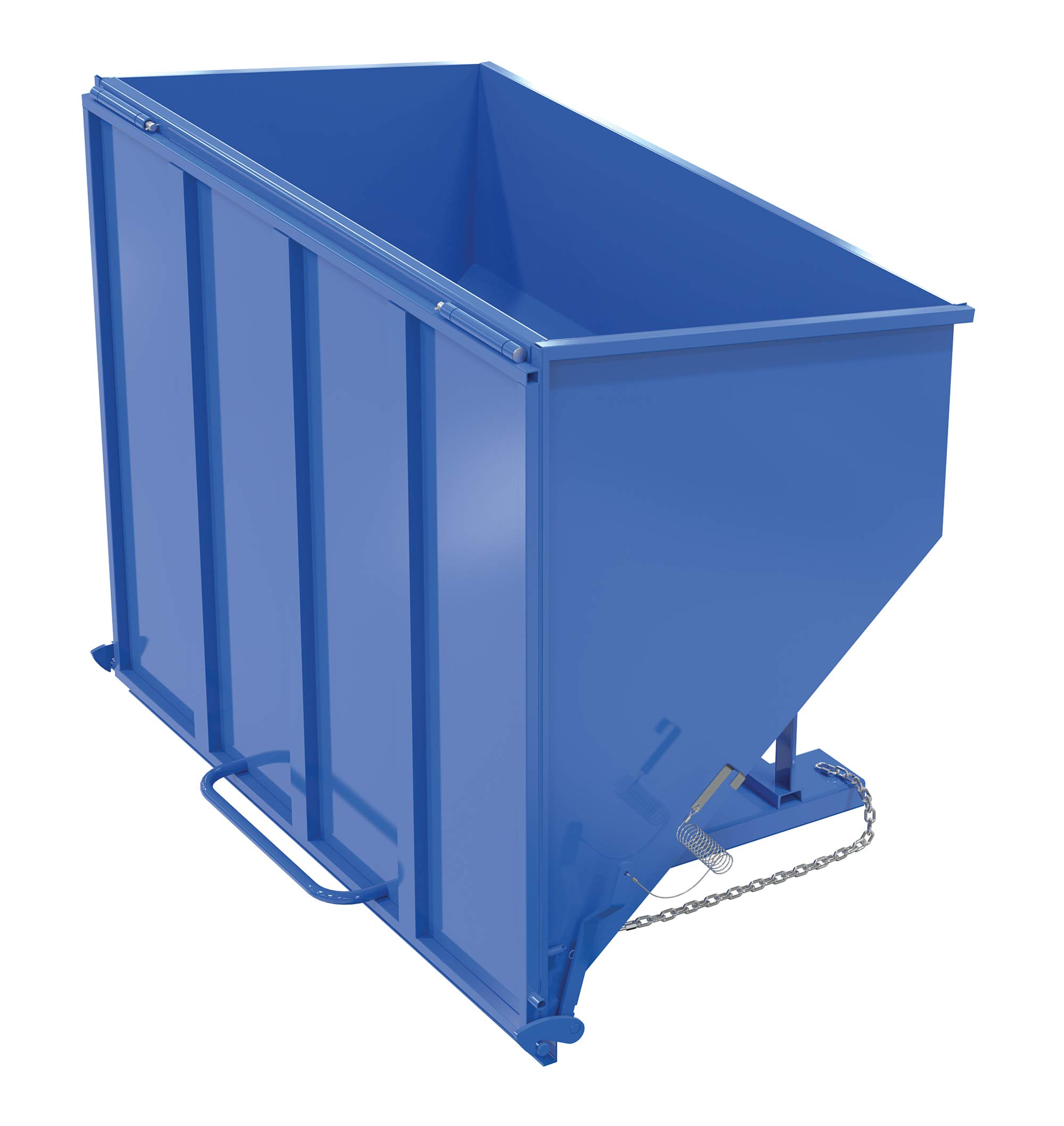

The Vestil C-HOP-300 chute hopper is a fixed-position hopper for the storage and transfer of dry bulk materials. It is made of welded 7 gauge steel for strength, has a blue paint finish, and can hold up to 3 cubic yd. of material weighing up to 2,000 lb. A release cable is attached for opening the front door from a safe distance, and the door automatically closes and locks after the contents are dumped. The hopper can be moved with a forklift truck, and the attached safety chain can be used to secure the hopper to the carriage of the truck. This chute hopper measures 67 x 85-5/8 x 57-1/4 inches (H x W x D). (H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Vestil manufactures materials handling equipment, including hoists and trolleys, jib and gantry cranes, loading dock equipment, and storage solutions. The company, founded in 1968, is headquartered in Angola, IN.
