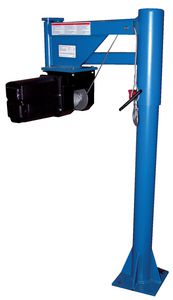

This Vestil VAN-J-DC van mount rotating jib lifter is for lifting loads up to 400 lb. from the ground and moving them into a van's cargo area. It has an electric winch powered by a 12V DC battery (sold separately) and a 46' cable with swivel hook for raising and lowering the load, and the arm is rotated manually up to 360 degrees for moving the load into the van. The winch is operated with a handheld controller that has a constant-pressure pushbutton for safety. The maximum span of the arm is 39-3/4", and the arm has a double pivot for use in restricted spaces. The lifter has a height of 46-1/16", the height from the van floor to the pulley is 42-1/8", and the mounting plate, which has four mounting slots, measures 8" x 8". A bench top charger (sold separately) can be used to charge the winch battery. This battery-powered jib lifter is made of welded steel for strength and has a blue paint finish.
| Specifications | |
|---|---|
| Capacity | 400 lb. |
| Overall height | 46-1/16" |
| Width of winch | 12-5/16" |
| Maximum arm span | 39-3/4" |
| Cable dimensions | 46' Length x 3/16" Diameter |
| Height under pulley | 42-1/8" |
| Mounting plate dimensions | 8" x 8" |
| Mounting slot dimensions | 7/8" Width x 1-1/4" Length |
| Weight | 126 lb. |
| Power | 12V DC |
| Length of electrical leads | 36" |
| Material | Welded steel with blue paint finish |
Jib cranes are used to lift a variety of materials in industrial, commercial, and military settings. Jib cranes consist of a single vertical mast, a cable winch, and a horizontal boom. The winch may be hand-operated or electric. The boo
Vestil VAN-J-DC Van Mount DC Powered Jib Lifter, Steel, 400 lb. Capacity, 46' Cable Length, 46-1/16" Height
This Vestil VAN-J-DC van mount rotating jib lifter is for lifting loads up to 400 lb. from the ground and moving them into a van's cargo area. It has an electric winch powered by a 12V DC battery (sold separately) and a 46' cable with swivel hook for raising and lowering the load, and the arm is rotated manually up to 360 degrees for moving the load into the van. The winch is operated with a handheld controller that has a constant-pressure pushbutton for safety. The maximum span of the arm is 39-3/4", and the arm has a double pivot for use in restricted spaces. The lifter has a height of 46-1/16", the height from the van floor to the pulley is 42-1/8", and the mounting plate, which has four mounting slots, measures 8" x 8". A bench top charger (sold separately) can be used to charge the winch battery. This battery-powered jib lifter is made of welded steel for strength and has a blue paint finish.
| Specifications | |
|---|---|
| Capacity | 400 lb. |
| Overall height | 46-1/16" |
| Width of winch | 12-5/16" |
| Maximum arm span | 39-3/4" |
| Cable dimensions | 46' Length x 3/16" Diameter |
| Height under pulley | 42-1/8" |
| Mounting plate dimensions | 8" x 8" |
| Mounting slot dimensions | 7/8" Width x 1-1/4" Length |
| Weight | 126 lb. |
| Power | 12V DC |
| Length of electrical leads | 36" |
| Material | Welded steel with blue paint finish |
Jib cranes are used to lift a variety of materials in industrial, commercial, and military settings. Jib cranes consist of a single vertical mast, a cable winch, and a horizontal boom. The winch may be hand-operated or electric. The boo
