Description
★★critical video link→ https://youtu.be/XVvDsdHq1OQ
IMPORTANT NOTE:the unit is ONLY applicable to THREE PHASE ASYNCHRONOUS motor,please confirm your motor is three-phase asynchronous motor before purchase.To protect VFD, when you stop using it,please be sure to press the red button "stop" and power off
specification:
Suitable Motor:<5.5KW
power:5.5KW
horsepower:7.4HP
Input voltage:single-phase or three-phase 220V + -15% 50Hz / 60Hz
Output voltage: 220V three-phase
Output frequency:0-50Hz / 0-400Hz
Input Frequency: 47-63Hz
Output Current:20A
Feature:
●PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability
●Easy PLC function can realize 16 legs of speed and inverter control function
●RS485 communication port, adopting standard international MODBUS main circuit control
●CWith extremely strong anti-jamming capability
●Low output ratting torque0.5HZ-150%, low speed running ability
●Carrier adjustable by 16KHZ, completely soundless working environment
●Broad voltage working area, normal running in 304V-456V
●Auto voltage regulation (AVR) technique, for ensuring the inverter load capability
●Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes
●With perfect error protection and short circuit starting protection capability
IMPORTANT NOTE:the unit is ONLY applicable to THREE PHASE ASYNCHRONOUS motor,please confirm your motor is three-phase asynchronous motor before purchase.To protect VFD, when you stop using it,please be sure to press the red button "stop" and power off
specification:
Suitable Motor:<5.5KW
power:5.5KW
horsepower:7.4HP
Input voltage:single-phase or three-phase 220V + -15% 50Hz / 60Hz
Output voltage: 220V three-phase
Output frequency:0-50Hz / 0-400Hz
Input Frequency: 47-63Hz
Output Current:20A
Feature:
●PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability
●Easy PLC function can realize 16 legs of speed and inverter control function
●RS485 communication port, adopting standard international MODBUS main circuit control
●CWith extremely strong anti-jamming capability
●Low output ratting torque0.5HZ-150%, low speed running ability
●Carrier adjustable by 16KHZ, completely soundless working environment
●Broad voltage working area, normal running in 304V-456V
●Auto voltage regulation (AVR) technique, for ensuring the inverter load capability
●Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes
●With perfect error protection and short circuit starting protection capability

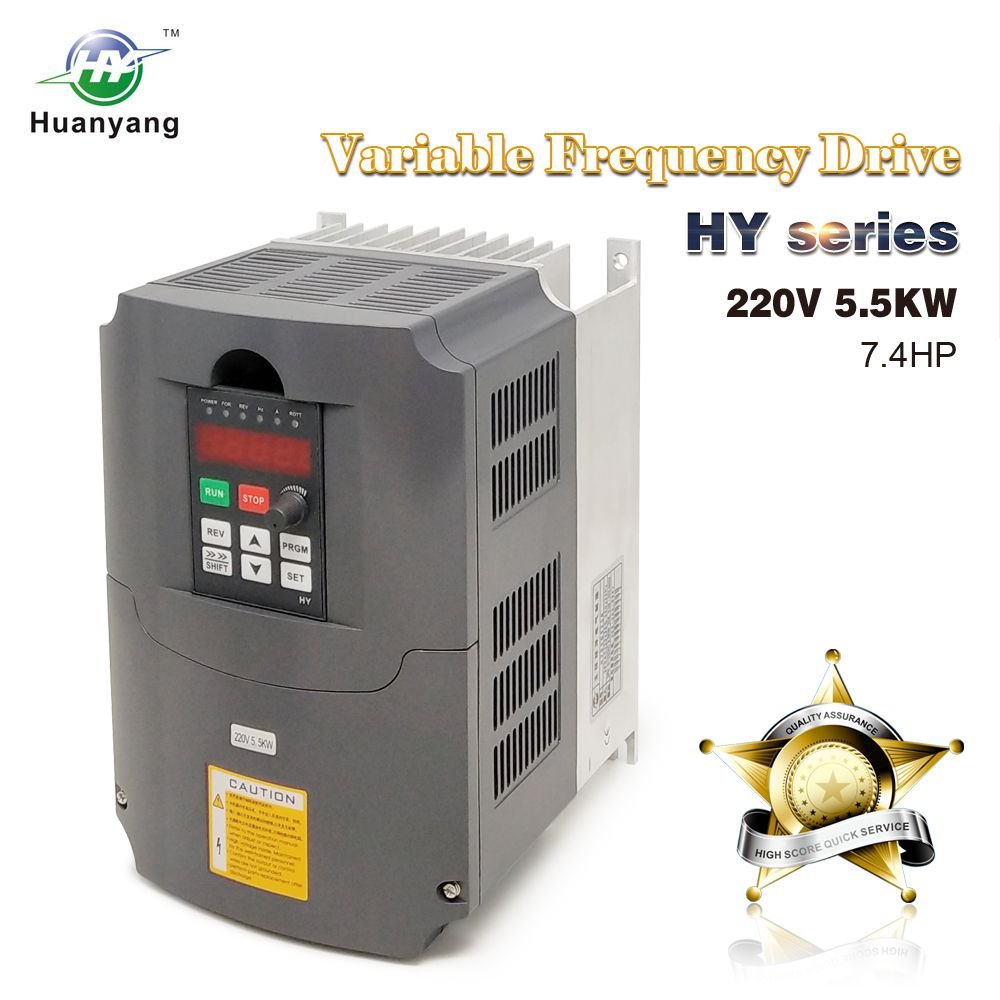

VFD 220V 5.5KW 7.5HP Variable Frequency Drive CNC Motor Inverter Converter for Spindle Motor Speed Control HUANYANG HY-Series(5.5KW, 220V)
