Description

The C-200 allows a single line phone or phone system to share a phone line with an entry phone. Tenants may answer an entry phone call and converse with the visitor.

The C-200 provides a "Call Waiting" tone when the phone line is in use.

Tenants may call out to the entry phone for monitoring purposes. Auxiliary contacts are provided to operate a doorbell, or activate a camera, lights, etc.

If additional features (such as doorstrike, multiple entry phone with caller ID, and keyless entry) are needed, use the Viking model C-2000A.

Applications
Add an entry phone to your standard home or office phones to provide door communication
Provide commercial or residential security via two-way handsfree communication at the door and gate
Connects in series with a single phone line or to a phone system's unused line input (loop start trunk input)
Features
Allows an entry phone to share a single telephone line with a residential or business telephone system
House phones ring with C.O. line cadence or distinctive ring when the entry phone "Call" button is pressed
Compatible with these Viking entry phones: - E-10, E-20A, E-30, E-40 Handsfree Phones - K-1500-7 Stainless Steel Panel Phone - Or use with any analog touch tone phone
Provide entry phone activated chimes and whole house paging when used with Viking model SLP-1
Produces double "Call Waiting" tones
One set of normally open and normally closed contacts available for operating a doorbell, camera, lights, etc.
Add door strike capability with the Viking model RC-2A Remote Touch Tone Controller
Specifications
Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided
Dimensions: 133mm x 104mm x 44mm (5.25" x 4.1" x 1.75")
Shipping weight: 0.9kg (2 lbs.)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity

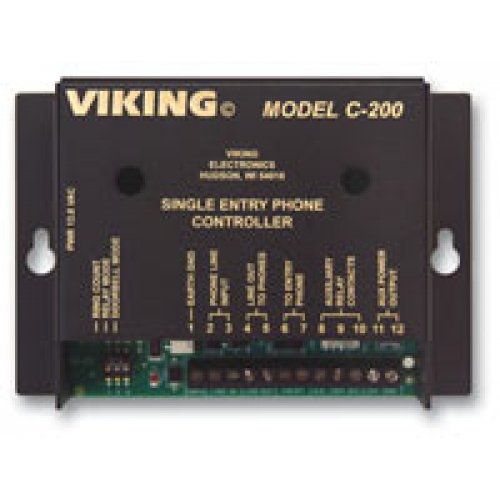

VIKING ELECTRONICS C-200 / Add an Entry Phone to an Existing Phone Line

Price is below average

Get price

Current Price

$97.32

Average

$159.68

Min Price

$97.32

Max Price

$211.58

Price dynamics

39%

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

hey folks Andrew with Viking electronics sitting here with our product support manager al Adams and today we're going to program the e-series IP entry phones so take me through some of the setup that we have going on here with this demonstration all right so yeah right now we have of course a single line phone that's connected to analog extension of our Panasonic system the p30 IP is connected to a compliant Pewee multi port switch that's providing it with p OE power and then the switch of course is tied back through a cable to our the SIP network that comes out of our Panasonic phone system okay and this computer that we're using for programming is is also tied in to that that same Panasonic network the SIP settings in our Panasonic system were configured by our Panasonic installer all these are our sip extensions that he created within our system and then the the passwords that are as
