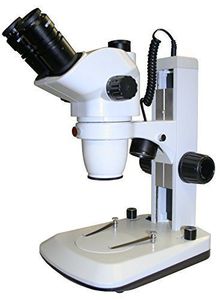

Fully coated optical system which provides a sharp and clear imaging with extreme flatness and contrast. This stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments. Designed to be outfitted with a variety of lens accessories to increase or reduce magnification. With a large zoom range and long-working distance, it can produce the best reproduction and true color imaging.

Specifications

Viewing Head:

• Trinocular head, (50/50 split ratio), 45° inclined and 360° rotatable
• Interpupillary distance adjustable from 54mm—76mm

Eyepiece:

• 10x wide-field (Field of view number, FN22), high eyepoint
• Two diopter adjustment of +/-5 on both eyepieces
• Paired 10x/22mm (Optional eyepieces WF15x/16mm, WF20x/12mm, Various reticle eyepieces WF10x/22mm available, not included)

Magnification:

• Total magnification: 7x—45x, the magnification range can be changed to 3.4x—180x with the auxiliary lens and optional eyepieces

Zooming Body:

• Standard objective zooming magnification range: 0.67x—4.5x, Zoom ratio: 1:6.7, Parfocal working distance: 105mm

Working Distance:

• Standard working distance of 105mm, working distance range can be enlarged to 26—177mm with the optional auxiliary lens

Imaging:

• Trinocular head available, 50/50 light splitting ratio, with special interface, able to connect to a digital camera, imitate CCD, digital CCD, VGA

Packing List

• Trinocular zoom stereo microscope head
• Pair of 10x WF eyepieces
• Track stand
• Pair of rubber eye guards
• Black & white reversible stage plate/Glass stage plate
• One dust cover
• User manual
