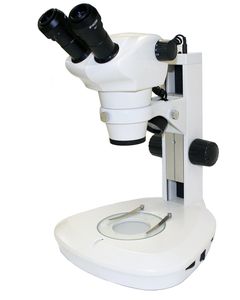

Fully coated optical system which provides a sharp and clear imaging with extreme flatness and contrast. This stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments. Designed to be outfitted with a variety of lens accessories to increase or reduce magnification. With a large zoom range and long-working distance, it can produce the best reproduction and true color imaging. Ideal for high-magnification, high-resolution observation in biological research, semi-conductor and other precision-oriented industries.

The compact, thin design of the large base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls.

Specifications

• Binocular head, 45° inclined and 360° rotatable
• Interpupillary distance adjustable from 52mm—75mm
• 10x wide-field (Field of view number, FN22), high eyepoint
• Two diopter adjustment of -8/+5 on both eyepieces
• Paired 10x/22mm (Optional eyepieces WF16x/13mm, WF20x/12mm, Various reticle eyepieces WF10x/22mm available, not included)
• Total magnification: 8x—50x, the magnification range can be changed to 4x—200x with the auxiliary lens and optional eyepieces
• Standard objective zooming magnification range: 0.8x—5x, Zoom ratio: 1:6.3, Parfocal working distance: 115mm
• Standard working distance of 115mm, working distance range can be enlarged to 43.5—211mm with the optional auxiliary lens

Packing List

• Binocular zoom stereo microscope head
• Pair of 10x WF eyepieces
• Track stand
• Pair of rubber eye guards
• Black & white reversible stage plate/Glass stage plate
• One dust cover
• User manual
