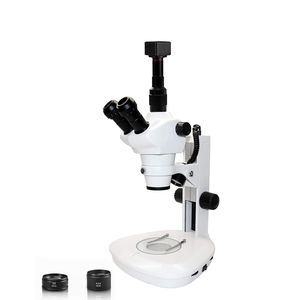

Fully coated optical system which provides a sharp and clear imaging with extreme flatness and contrast. This stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments.

Specifications

• Trinocular head, (30/70 split ratio, with 0.5x C-mount included), 45° inclined and 360° rotatable
• Interpupillary distance adjustable from 52mm—75mm
• 10x wide-field (Field of view number, FN22), high eyepoint
• Two diopter adjustment of -8/+5 on both eyepieces
• Paired 10x/22mm (Optional eyepieces WF16x/13mm, WF20x/12mm, Various reticle eyepieces WF10x/22mm available, not included)
• Total magnification: 8x—50x, the magnification range can be changed to 4x—100x with the auxiliary lens and optional eyepieces
• Standard objective zooming magnification range: 0.8x—5x, Zoom ratio: 1:6.3, Parfocal working distance: 115mm
• Auxiliary lens: 0.5x/211mm (working distance), 2x/43.5mm (working distance)
• Standard working distance of 115mm, working distance range can be enlarged to 43.5—211mm with auxiliary lens
• 5 focus adjustable C-mount (included)
• 5.0 megapixel (2592 x 1944 max resolution)
• Frame Rate: 38 fps (640 x 480) / 25 fps (1024 x 768) / 21 fps (1280 x 960) / 5 fps (2592 x 1944)
• JPEG, BMP image format; Windows XP, Vista, 7, 8, 10 compatible; USB 2.0 interface

Packing List

• Trinocular zoom stereo microscope head
• Pair of 10x WF eyepieces
• Track stand
• Pair of rubber eye guards
• Black & white reversible stage plate/Glass stage plate
• One dust cover
• User manual
• 0.5x and 2x auxiliary lens
• 5.0 MP digital eyepiece camera
• USB 2.0 cable
• Imaging software CD
