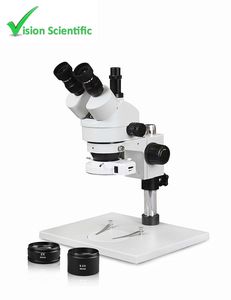

This Vision Scientific trinocular zoom stereo microscope is ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional or temperature-sensitive specimen or object. The compact, thin design of the large base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls. The pillar stand provides a long working distance, to offer flexibility when working with small or large samples. Rugged cast aluminum with gray enamel finish. Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.

Specifications

• Head: Trinocular, 45° inclined, rotates 360°
• Eyepiece: 10x WF / 20mm high eye point
• Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
• Magnification Range: 7x—45x, 5x—90x with the 0.5x & 2x auxiliary Lens
• Working Distance: Up to 8” vertical movement, Up to 4” optical working distance
• Focusing: Heavy duty rack and pinion focusing arm with tension adjustment
• Stage: Black & white reversible stage plate with a pair of stage clips
• Stand: Pillar stand with large base
• Light Source: 144-LED ring light with intensity control

Packing List

• Trinocular zoom stereo microscope head
• Pair of 10x WF eyepieces
• Pillar stand with large base
• Focusing arm
• Pair of eye guards
• One dust cover
• User manual
• 5x and 2x auxiliary lens
• 144-LED ring light with intensity control
• Power adaptor
