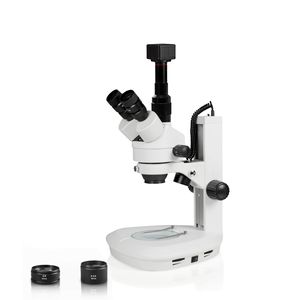

Ideal for high-magnification, high-resolution observation in biological research, semi-conductor and other precision-oriented industries.

Camera Specifications

• 5.0 megapixels (2560 X 1920 Max Resolution)
• 30fps (640 X 490 Pixels)
• JPEG, BMP image format; Windows XP, Vista, 7, 8, 10 compatible; USB 2.0 interface

Specifications:

• Head : Trinocular head, 45° inclined and 360° rotatable, Interpupillary distance adjustable from 54-76mm.
• Eyepiece : 10x widefield, high eyepoint, field of view 20mm, Two dioptre adjustment of +/-6 on both eyepiece.
• Magnification : 7x-45x, range can be changed to 3.5x-90x with 0.5x & 2x auxiliary lens
• Working Distance : Standard 105mm, can be changed to 36mm (2x lens) – 189mm (0.5X lens).
• Zoom range : 0.7x-45x, 1:6.4.
• Focus: Heavy duty rack and pinion focusing arm with tension adjustment.
• Light Source : LED Illumination with controls.

Warranty

• 5 year limited warranty excluding bulbs

Packing List

• One trinocular zoom stereo microscope head
• 0.5x and 2x auxiliary lens
• Track stand with a focusing arm
• Pair of highpoint 10x widefield eyepieces
• Top and bottom LED illumination
• Glass stage plate
• Black & white reversible stage plate
• Pair of stage clips
• Pair of rubber eye guards
• One dust cover
• User manual
• 5.0 MP digital eyepiece camera
• USB 2.0 cable
• Imaging software CD

Shipping Information

• 18” x 10” x 10”
• 12 lbs
