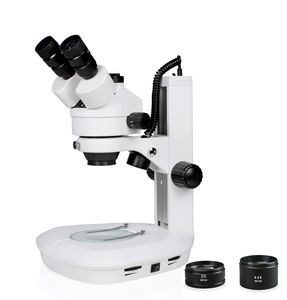

This Vision Scientific VS-2F trinocular zoom stereo microscope is ideal for biological, laboratory, and industrial application, or for use in veterinary and medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional or temperature-sensitive specimen or object.

The compact, thin design of the base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls. The focus mount is easily removable and can be positioned at two different points on the dovetail focusing column, to offer maximum flexibility when working with small or large samples.

Specifications

• Head: Trinocular, 45° inclined, rotates 360°   (54-76mm interpupillary adjustment)
• Eyepiece: 10x WF / 20mm high eyepoint   (both ocular tubes are +/-6  diopter adjustable)
• Zoom Range: 0.7x—4.5x,  1:6.4 zoom ratio
• Magnification Range: 7x—45x,  3.5x—90x with the 0.5x & 2x auxiliary Lens
• Working Distance: Up to 4” optical working distance / 100mm standard
• Focus: Heavy duty rack and pinion focusing arm with tension adjustment
• Light Source: Top and bottom LED illumination with intensity control

Packing List

• Trinocular zoom stereo microscope head
• Track stand with a focusing arm
• Pair of 10x WF eyepieces
• 0.5x and 2x auxiliary lens
• Pair of rubber eye guards
• Power adaptor
• Dust cover
• User manual
