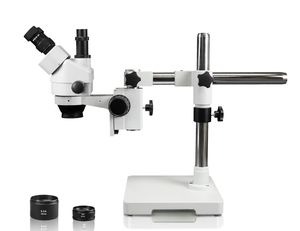

This Vision Scientific trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects.
The solid cross block and brass inserts improve movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating, swivelling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas; making it sure to meet your flexibility requirements.
Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.
Specifications
- Head: Trinocular, 45° inclined, rotates 360°
- Eyepiece: 10x WF / 20mm high eye point
- Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
- Magnification Range: 7x—45x, 3.5x—90x with the 0.5x & 2x auxiliary Lens
- Working Distance: 100 mm standard
- Focusing: Heavy duty rack and pinion focusing arm with tension adjustment
- Stand: Single arm boom stand
- Overall Dimensions: 22” x 18” x 12” / Weight: 38 lbs
Packing List
- Trinocular zoom stereo microscope head
- Pair of 10x WF eyepieces
- Single arm boom stand
- Focusing arm
- Pair of eye guards
- One dust cover
- User manual
- 0.5x and 2x auxiliary lens
Vision Scientific VS-3FZ Simul-Focal Trinocular Zoom Stereo Microscope, 10x WF Eyepiece, 0.7X-4.5X Zoom, 3.5X-90x Magnification, 0.5X & 2X Auxiliary Lens, Single Arm Boom Stand
This Vision Scientific trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects.
The solid cross block and brass inserts improve movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating, swivelling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas; making it sure to meet your flexibility requirements.
Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.
Specifications
- Head: Trinocular, 45° inclined, rotates 360°
- Eyepiece: 10x WF / 20mm high eye point
- Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
- Magnification Range: 7x—45x, 3.5x—90x with the 0.5x & 2x auxiliary Lens
- Working Distance: 100 mm standard
- Focusing: Heavy duty rack and pinion focusing arm with tension adjustment
- Stand: Single arm boom stand
- Overall Dimensions: 22” x 18” x 12” / Weight: 38 lbs
Packing List
- Trinocular zoom stereo microscope head
- Pair of 10x WF eyepieces
- Single arm boom stand
- Focusing arm
- Pair of eye guards
- One dust cover
- User manual
- 0.5x and 2x auxiliary lens
