Description

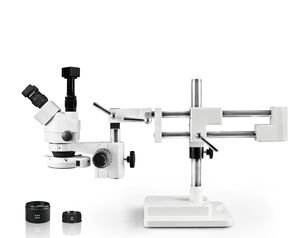

This Vision Scientific trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects.

The solid cross block and brass inserts improve movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating, swivelling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas.

Specifications

Head: Trinocular, 45° inclined, rotates 360°
Eyepiece: 10x WF / 20mm high eye point
Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
Magnification Range: 7x—45x, 5x—90x with the 0.5x & 2x auxiliary Lens
Working Distance: Up to 8” vertical; Up to 4” optical; 20” boom arm adjustable
Focusing: Heavy duty rack and pinion focusing arm with tension adjustment
Stand: Double arm ball-bearing boom stand
Light Source: 144-LED ring light with intensity control

Camera Specifications

5.0 megapixel (2592 x 1944 max resolution)
Frame Rate: 38 fps (640 x 480) / 25 fps (1024 x 768) / 21 fps (1280 x 960) / 5 fps (2592 x 1944)
JPEG, BMP image format; Windows XP, Vista, 7, 8, 10 compatible; USB 2.0 interface

Packing List

Trinocular zoom stereo microscope head
Pair of 10x WF eyepieces
Double arm boom stand
Focusing arm
Pair of eye guards
One dust cover
User manual
0.5x and 2x auxiliary lens
144-LED ring light with intensity control
Power adaptor
5.0 MP digital eyepiece camera
USB 2.0 cable
Imaging software CD

Vision Scientific VS-5FZ-IFR07-5N Simul-Focal Trinocular Zoom Stereo Microscope,10xWF Eyepiece,3.5x-90x Magnification,0.5x &2xAux Lens, Double Arm Stand,144-LED RingLight,5.0MP Digital Eyepiece Camera

Get price

Current Price

$580

Average

$565.29

Min Price

$270

Max Price

$639

Price dynamics

Description

Specifications

Head: Trinocular, 45° inclined, rotates 360°
Eyepiece: 10x WF / 20mm high eye point
Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
Magnification Range: 7x—45x, 5x—90x with the 0.5x & 2x auxiliary Lens
Working Distance: Up to 8” vertical; Up to 4” optical; 20” boom arm adjustable
Focusing: Heavy duty rack and pinion focusing arm with tension adjustment
Stand: Double arm ball-bearing boom stand
Light Source: 144-LED ring light with intensity control

Camera Specifications

5.0 megapixel (2592 x 1944 max resolution)
Frame Rate: 38 fps (640 x 480) / 25 fps (1024 x 768) / 21 fps (1280 x 960) / 5 fps (2592 x 1944)
JPEG, BMP image format; Windows XP, Vista, 7, 8, 10 compatible; USB 2.0 interface

Packing List

Trinocular zoom stereo microscope head
Pair of 10x WF eyepieces
Double arm boom stand
Focusing arm
Pair of eye guards
One dust cover
User manual
0.5x and 2x auxiliary lens
144-LED ring light with intensity control
Power adaptor
5.0 MP digital eyepiece camera
USB 2.0 cable
Imaging software CD

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

about this item 45 degree inclined trinocular head that rotates 360 degrees the simulfocal trinocular port allows you to connect a digital camera or an hd touch screen it features a 54 to 76 millimeters inter pupillary adjustment while both ocular tubes are equipped with a plus slash 6 diopter adjustable to compensate for eye strength difference when needed 7 x 45 x standard magnification range that when used with the included 0.5 x and 2x auxiliary lens expands to a 3.5 x 90 x magnification range it has a field of view of two one half 65 millimeters while the par-focaled optical design ensures that images remain sharp crisp and focused throughout the entire magnification range large and stable double-arm boom stand offers a long and flexible working distance while the advanced ball bearing technology allows the arm to glide with little resistance the solid steel tabletop rectangular ba
