Camera
Image Sensor:1/2.9" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Focus:Fixed
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:256Kbps~16Mbps
Triple Streams:Yes
Image Resolution:Max:6MP(3072 x 2048@20fps) ;
Optional:4mp(2560 × 1440@30fps),etc
Image Enhancement:BLC/3D DNR/ROI/HLC
Image Settings:Rotate mode, saturation, brightness, contrast,
sharpness and white balance adjustable by client software or web browser
ROI:1 fixed region for main stream and sub-stream
Network
Network Storage:microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G),ISAPI
Interface Communication Interface:1 RJ45 10M / 100M Ethernet interface On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis:Line crossing detection, intrusion detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Recognition:Face Detection
General
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:12 VDC, 0.5 A, max. 6.0W; PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 7.5W
WeatherProof:IP67

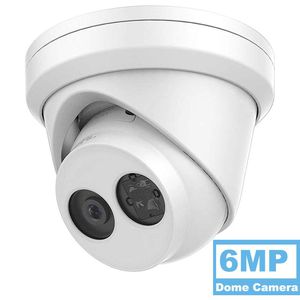

VIVSKY 6MP Turret IP Camera, OEM DS-2CD2363G0-I,2.8mm Network Home Surveillance Security Camera, Up to 98ft/30m Night Vision, Micro SD Card Slot, H.265+,IP67 Waterproof
Camera
Image Sensor:1/2.9" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Focus:Fixed
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:256Kbps~16Mbps
Triple Streams:Yes
Image Resolution:Max:6MP(3072 x 2048@20fps) ;
Optional:4mp(2560 × 1440@30fps),etc
Image Enhancement:BLC/3D DNR/ROI/HLC
Image Settings:Rotate mode, saturation, brightness, contrast,
sharpness and white balance adjustable by client software or web browser
ROI:1 fixed region for main stream and sub-stream
Network
Network Storage:microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G),ISAPI
Interface Communication Interface:1 RJ45 10M / 100M Ethernet interface On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis:Line crossing detection, intrusion detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Recognition:Face Detection
General
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:12 VDC, 0.5 A, max. 6.0W; PoE: (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 7.5W
WeatherProof:IP67
