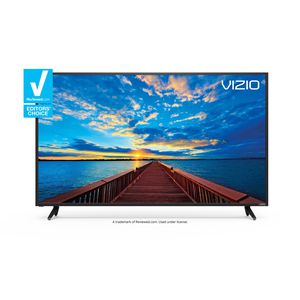

VIZIO E50x-E1 50-Inch 4K UHD TV

[Music] in this video we will show how to replace the LED strips in this vizio tv it is recommended to take pictures during the repair process to use as a reference point be sure your TV is unplugged remove the screws and the back cover off the TV before completely removing the back cover you will need to disconnect the cable that is connected to a board and the back cover remove the speakers from the TV disconnect the ribbon cables from the scan drive boards peel back the tape that is holding down the scan drive boards to the chassis carefully pry the scan drive board from the chassis release the scan drive wards peel back the tape around the chassis remove the screws along the bezel very gently flip the TV over and remove the bezel lift the scan drive boards and tape them to the panel using suction cups carefully lift and remove the panel from the chassis remove the panel frame tape t
