Description

information download link:http://www114.zippyshare.com/v/YZuaBovA/file.html Description:
This circuit voltage can be from 0 v, output current can be ma from 2 to 3 a continuously adjustable, set the output current, if the experiment circuit exceeds the current (including short circuit), the circuit protection immediately, not cause danger such as burning device, it is electronic manufacture's right-hand man. It is never afraid of the fireworks! Like making all kinds of audio circuit friend, often due to the different working voltage and circuit have a headache, this circuit can also two series into a dual power supply, can meet the needs of all sorts of use.

Feature:
Input voltage: 24V AC
Input current: 3A maximum
Output voltage: 0 to 30V continuous adjustable
Output current: 2mA - 3A continuously adjustable
output voltage ripple: minimum 0.01%
All straight inserted element, make easy, only an adjustable components ( used to adjust the voltage of 0 v )
LED indicator for output over current, when the current exceeds the set data circuit protection, LED lighting, over load and short circuit protection Minimum current (2mA) under the measurable leds and zener diode

Notice:
Power production belongs to the high voltage large current circuit, please be sure to carefully, otherwise may cause harm to the personal safety

Package included:
1 x Adjustable DC Regulated Power Supply DIY Kit

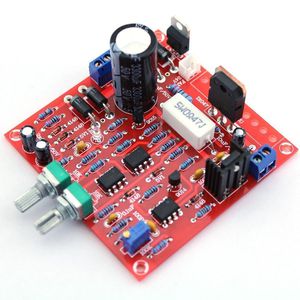

Vkmaker 0-30V 2mA - 3A Adjustable DC Regulated Power Supply DIY Kit Short Circuit Current Limiting Protection

Get price

Current Price

$9.49

Average

$8.24

Min Price

$7.49

Max Price

$9.99

Price dynamics

13%

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

hello we're and well welcome back to my basement and once again speech power supply you see a number the videos you can follow what I'm talking about and Bob had a question and I gave him an answer beep anything I don't know if you like mess orbit because it gives you more work the problem is that the setting point I had now you are running ahead for dials here only free is connected the amp'd says current limitation is still working and this using a voltage setting which I talked about and now has two potentiometers for setting the voltage and why do I want that well the problem is when you touch this one which is working as original on here now it is quite yes sensitive or a math course or rough I have for 1814 pong tables and I want to slightly bit mobile this and if I touch it is very easy to overshoot very hard to it want for some reason a very precise voltage it's not easy to set
