Description
Specification
Designation:Technical Data
Range of scanning (mm):Range of scanning (mm)：0～10000 Steps: 2.5,5,10,20, 30,40,50,60,70,80,90, 100,150,200, 250, 300, 350, 400, 450,500,600,700,800,900,1000,2000,3000,4000,5000,6000,7000,8000,10000 Adjusting step: 0.1mm（2.5 mm～99.9mm），1mm（100mm～10000mm）
D-delay (ms):D-delay (ms)：-20～+3400
Steps: -20,-10,0.0, 10, 20, 50,100,150,200,250,300,350,400,450,500, 600, 700,800,900,100,015,000,000,000,000,000,000.00 Adjusting steps: 0.1（-20ms～999.9ms），1（1000ms～3400ms）
P-delay (ms):P-delay：0.0～99.99 Adjusting steps: 0.01
MTLVEL（m/s）:MTLVEL：1000～15000 10 fixed levels: 2260,2730,3080,3230,4700,5920,630012000,13000,14000,15000 Adjusting steps: 1
Working mode:Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)
Frequency Range (MHz):0.5~20
Gain adjustment (dB):0～120 Adjusting step: 0.0，0.1，0.5，1，2，6，12
Reject:0%～80% of screen height, step: 1%
Vertical linear error:Vertical linear error is not more than 3%
Horizontal linear error:Not more than 0.2% in the scanning range
Sensitivity Leavings:≥62 dB
Dynamic range:≥34dB
Alarm:Three modes, i.e. forbidden wave, loss wave and auto
A-Scan display area:Full screen or local A-Scan display freezing and de-freezing A-Scan filling
Data save:300 A-Scan images (including setting of instrument)
Standard communication interface with PC:RS232/USB
Measuring unit:mm/inch
Battery:Li battery 7.4V 4800mAh
Power adaptor:Input 100V～240V/50Hz～60Hz Output 9VDC/1.5A
Working temperature:-20℃～50℃
Working humidity:20%～90%
Port type:LEMO 1
Overall dimension (mm):240×150×50
Weight (kg):1.6

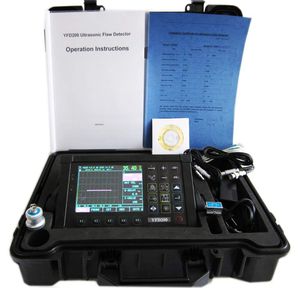

Standard Configurations
YFD200 main unit： 1
1.5A/9V power adaptor (110v-240v)： 1
probe connecting cable： 2
Carrying case： 1
Instruction manual： 1
Straight transducer： 20mm 2.5MHz (One)
