Description

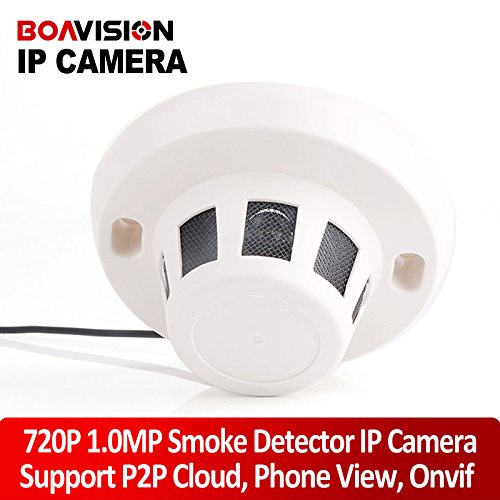

Main Features : High sensitivity, high signal-to-noise CMOS image sensor, HI3518C Processing chip
Up to 720P(1280*720) resolutions Frame rate 1.0 Mega pixels 25 fps (real time) H.264 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system support multiple
network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP
Support DDNS and three DDNS
Support sending email, attaching picture Alarm picture and record Uploaded to FTP server
Timing captured picture to FTP server
Support Static IP and DHCP
System:Embedded RTOS design,dual core DSP(Hi3518C),pure hardware compression,watchdog
Sensor:1/4" OV 9712 CMOS sensor,support Day/Night(IR cut optional), photoresistor signal linkage;support CS lens and DC drive auto iris lens;color 0.6ux&F1.2, B/W 0.08 Lux&F1.2
Video:H.264 compression,support dual stream,AVI format, stream:0.1M~6Mpbs; frame:1~30fps
Resolution:Main stream:1280*720;Sub stream:704*576(720P) Network 1 x RJ45, 10/100M, support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
Other interface:1 x external signal port, 1 x IR CUT,support photoresistor input signal linked with image,IR-CUT
Function:Support WEB configuration, OSD, realtime video transmitting, support motion detect and IO alarm activated to remotely recording,screen pop up,message,playback and download,support JPEG capture, support CMS&MYEYE, SDK available
ONVIF:Support 2.3
Mobile Monitor: Support iPhone,Windows Mobile,BlackBerry,Symbian,Android
other:DC 12V power
Case:plastic,Indoor Use
P2P Cloud:Support
Lens 3.6mm
Support NVR:Brand dahua/hikvision etc. and any made-in-china nvrs support onvif 2.0 or higher
