Description
Description:

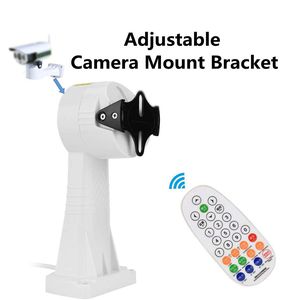

This rotate stand is a good solution for cctv camera to make it to be with rotate function. You can easily upgrade the high-definition camera to up and down and left and right can be rotated without wiring. Especially customized high quality and durable motor. Work stable and have long work life.
Specifications:
Remote control omnibearing:
Product load
1500g
Support Agreement
PELCO-D
Baud rate
2400
Address range
1-200
Control method
RS485
Power supply
DC12V 2~1.5A
Working temperature
-30°C~55°C
RS485 Wire control:
Horizontal rotation angle
255 degrees
Rotational speed
horizontal speed 6 degrees, 12 degrees, 20 degrees
Vertical rotation angle
60 degrees
Vertical rotation speed
9 degrees/second
Limit
left and right electronic limit, can be set arbitrarily
Limit automatic scan
Yes, three speed adjustable
Preposition
Yes, 8 presets
Preset cruising
Yes, 1 preset cruise line, 3 level of rotate speed
Watch bit function
Yes
Manually reset function:
Yes
Address Code
128 Soft Address Codes
Control method
RS485
Interface
DC Power Supply + RS485
Power supply
DC 12V±5% / 100mA
Power consumption
0.9W
Working environment
-25 °C -55 °C, humidity less than 95% (non-condensing)
RS485 Wire Cntrol omnibearing length
195mm
RS485 (Horizontal rotation ) length
170mm
Package List:
1 * Rotating Bracket Pan for CCTV Camera (Based on what you choose)
This rotate stand is a good solution for cctv camera to make it to be with rotate function. You can easily upgrade the high-definition camera to up and down and left and right can be rotated without wiring. Especially customized high quality and durable motor. Work stable and have long work life.
Specifications:
Remote control omnibearing:
Product load
1500g
Support Agreement
PELCO-D
Baud rate
2400
Address range
1-200
Control method
RS485
Power supply
DC12V 2~1.5A
Working temperature
-30°C~55°C
RS485 Wire control:
Horizontal rotation angle
255 degrees
Rotational speed
horizontal speed 6 degrees, 12 degrees, 20 degrees
Vertical rotation angle
60 degrees
Vertical rotation speed
9 degrees/second
Limit
left and right electronic limit, can be set arbitrarily
Limit automatic scan
Yes, three speed adjustable
Preposition
Yes, 8 presets
Preset cruising
Yes, 1 preset cruise line, 3 level of rotate speed
Watch bit function
Yes
Manually reset function:
Yes
Address Code
128 Soft Address Codes
Control method
RS485
Interface
DC Power Supply + RS485
Power supply
DC 12V±5% / 100mA
Power consumption
0.9W
Working environment
-25 °C -55 °C, humidity less than 95% (non-condensing)
RS485 Wire Cntrol omnibearing length
195mm
RS485 (Horizontal rotation ) length
170mm
Package List:
1 * Rotating Bracket Pan for CCTV Camera (Based on what you choose)
