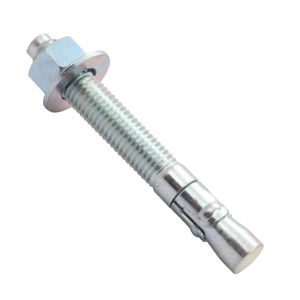

The Wej-It Ankr-TITE AT wedge anchor with zinc-plated carbon steel body provides a secure hold in solid masonry and uncracked concrete, meets Federal Specifications QQZ-325Z Type II Class 3 and GSA FFS-325 Group II Type 4 Class 1, and complies with Miami-Dade NOA #08-0911.02 code. The anchor consists of a zinc-plated steel body, a zinc-coated steel washer and nut, and a steel clip. It must be installed into a drilled hole with a diameter equal to that of the anchor to an embedment depth of 1-3/4" or greater. The washer lies flush against the mounting surface when the anchor is installed, and the nut tightens with a wrench to draw the threaded portion of the anchor up, causing the clip to expand and secure the anchor in place. The clip has large dimples that provide traction to reduce slippage and increase hold in lightweight concrete. The dog point prevents damage during installation, and the safety shoulder above the clip provides support when the anchor is under severe strain.
Specifications
Ultimate Tensile Strength for Static Loads
| Anchor Diameter | At Embedment Depth | 4,000-psi Concrete | 6,000-psi Concrete | ||||||||||||||||||||||||||||||||||||||||
| 1/4" | 1-1/4" | 2,000 lb. | 2,042 lb. | ||||||||||||||||||||||||||||||||||||||||
| 1/4" | 2-1/2" | 2,600 lb. | 2,826 lb. | ||||||||||||||||||||||||||||||||||||||||
| 3/8" | 1-3/4" | 3,850 lb. | 4,790 lb. | ||||||||||||||||||||||||||||||||||||||||
| 3/8" | 4-5/8" | 6,020 lb. | 6,635 lb. | ||||||||||||||||||||||||||||||||||||||||
| 1/2" | 2-1/8" | 6,324 lb. | 7,540 lb. | ||||||||||||||||||||||||||||||||||||||||
| 1/2" | 6-1/4" | 8,249 lb. | 10,713 lb. | ||||||||||||||||||||||||||||||||||||||||
| 5/8" | 2-5/8" | 9,527 lb. | 10,597 lb. | ||||||||||||||||||||||||||||||||||||||||
| 5/8" | 6" | 15,893 lb. | 16,705 lb. | ||||||||||||||||||||||||||||||||||||||||
| 3/4" | 3-3/4" | 13,130 lb. | 18,979 lb.Wej-It Ankr-TITE AT Wedge Anchor, Carbon Steel, Zinc Plated Finish, Meets QQZ-325Z Type II Class 3 and GSA FFS-325 Group II Type 4 Class 1 Specifications, 3/8" Diameter, 7" Length, 4-1/2" Threaded Length (Pack Of 50)Current Price $169.99 Average $48.44 Min Price $17 Max Price $169.99 Price dynamics 72% Description The Wej-It Ankr-TITE AT wedge anchor with zinc-plated carbon steel body provides a secure hold in solid masonry and uncracked concrete, meets Federal Specifications QQZ-325Z Type II Class 3 and GSA FFS-325 Group II Type 4 Class 1, and complies with Miami-Dade NOA #08-0911.02 code. The anchor consists of a zinc-plated steel body, a zinc-coated steel washer and nut, and a steel clip. It must be installed into a drilled hole with a diameter equal to that of the anchor to an embedment depth of 1-3/4" or greater. The washer lies flush against the mounting surface when the anchor is installed, and the nut tightens with a wrench to draw the threaded portion of the anchor up, causing the clip to expand and secure the anchor in place. The clip has large dimples that provide traction to reduce slippage and increase hold in lightweight concrete. The dog point prevents damage during installation, and the safety shoulder above the clip provides support when the anchor is under severe strain. SpecificationsUltimate Tensile Strength for Static Loads
|
