Description
This high-power stereo Bluetooth audio module designed with dual channels audio signal output. Built-in amplifier module therefore it can connect to loudspeaker directly. It is ideal for DIY wireless Bluetooth speakers and transponders. Parameters: 1.Module Size: 55*38*14mm 2.Remote controller: 86*40*7mm 3.Work Voltage: DC 5V-24V 1.Communication Distance: 15meter(Max) 2.Channel: Dual channel 3.Output Power(at 1KHz): Output power 20W*2 at 12V 4ohm Output power 30W*2 at 16V 4ohm Output power 30W*2 at 21V 8ohm Output power 40W*2 at 24V 8ohm 4.Match speaker(40W~200W): 4ohm at 5V~16V 8ohm at 5V~24V 5.Work Temperature: -40℃~85℃ 6.Work Humidity: 0%~95%RH Package Included: 1 x Stereo Bluetooth Power Amplifier Module 1 x Remote Control 2 x Acrylic Shell 4 x Copper Column 8 x Screw Using Steps: 1.Choose the right speaker and connect as shown in wiring diagram. 2.Connect to right power supply from input terminal. LED indicator will flashing and it means that module enters pairing mode. And then speak prompt voice and it means that module is waiting for pairing. 3.Turn ON Bluetooth in phone. 4.Select Bluetooth device 'XY-P40W' in your Bluetooth device listing. 5.LED indicator will keep ON and it means that module is successfully connected and is waiting for playing. 6.Module will playing music after select music in phone. LED indicator will keep slowly blinking. 7.Increase volume by turn right potentiometer. 8.Decrease volume by turn left potentiometer. 9.Press potentiometer to play or pause music. 10.Press remote control also can control module. 11.Module will speak prompt voice if disconnected.

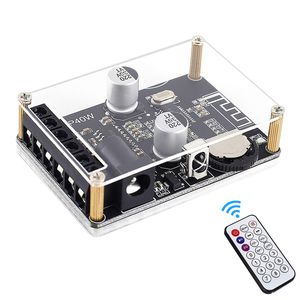

WHDTS Stereo Bluetooth Power Amplifier Board Remote Control 5V 12V 24V 20W 30W 40W Infrared Receiver Module with Case
Current Price
$12.99
Average
$12.99
Min Price
$12.99
Max Price
$12.99
Description
This high-power stereo Bluetooth audio module designed with dual channels audio signal output. Built-in amplifier module therefore it can connect to loudspeaker directly. It is ideal for DIY wireless Bluetooth speakers and transponders. Parameters: 1.Module Size: 55*38*14mm 2.Remote controller: 86*40*7mm 3.Work Voltage: DC 5V-24V 1.Communication Distance: 15meter(Max) 2.Channel: Dual channel 3.Output Power(at 1KHz): Output power 20W*2 at 12V 4ohm Output power 30W*2 at 16V 4ohm Output power 30W*2 at 21V 8ohm Output power 40W*2 at 24V 8ohm 4.Match speaker(40W~200W): 4ohm at 5V~16V 8ohm at 5V~24V 5.Work Temperature: -40℃~85℃ 6.Work Humidity: 0%~95%RH Package Included: 1 x Stereo Bluetooth Power Amplifier Module 1 x Remote Control 2 x Acrylic Shell 4 x Copper Column 8 x Screw Using Steps: 1.Choose the right speaker and connect as shown in wiring diagram. 2.Connect to right power supply from input terminal. LED indicator will flashing and it means that module enters pairing mode. And then speak prompt voice and it means that module is waiting for pairing. 3.Turn ON Bluetooth in phone. 4.Select Bluetooth device 'XY-P40W' in your Bluetooth device listing. 5.LED indicator will keep ON and it means that module is successfully connected and is waiting for playing. 6.Module will playing music after select music in phone. LED indicator will keep slowly blinking. 7.Increase volume by turn right potentiometer. 8.Decrease volume by turn left potentiometer. 9.Press potentiometer to play or pause music. 10.Press remote control also can control module. 11.Module will speak prompt voice if disconnected.
