Description
The Whirlwind MIPAI media input plates are active, dual input mixer plates designed to combine line and microphone input sources into a single line level balanced output that can be sent over long distances to remote audio processing equipment. Applications include gymnasiums, banquet halls, conference centers and others where local volume control is desired for the source material. The MIPAI is available in a one gang wall plate with black or clear brushed aluminum finish and in a two gang white decor insert. Each Whirlwind MIPAI plate is a standalone two channel mixer with one balanced mic level input via a 3 pin female XLR and a stereo aux input connected through a 3.5mm TRS unbalanced jack that is summed to mono. Separate level controls are provided for each input and deliver enough gain to drive modern power amplifiers to full output. A bass cut switch is provided on the mic input for reducing rumble and handling noise. An additional line input appears on the rear panel screw terminals for connecting up to two more MIPAI plates in a daisy chain type configuration, i.e., output of the first to the input of the second, output of the second to the input of the third and output of the third to the processing electronics. All three plates are summed together and all six level controls can adjust their respective inputs up to the maximum output drive level of +22dB. If inputs from multiple MIPAI plates are used at the same time caution must be taken to keep the

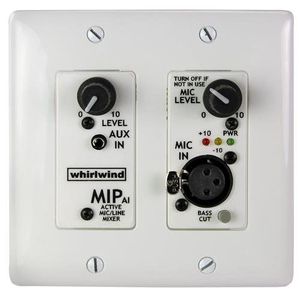

Whirlwind MIPAID 2 Gang Media Input Active Wall Plate with Power Supply, White
Current Price
$155
Average
$142.27
Min Price
$137
Max Price
$155
Price dynamics
8%
Description
The Whirlwind MIPAI media input plates are active, dual input mixer plates designed to combine line and microphone input sources into a single line level balanced output that can be sent over long distances to remote audio processing equipment. Applications include gymnasiums, banquet halls, conference centers and others where local volume control is desired for the source material. The MIPAI is available in a one gang wall plate with black or clear brushed aluminum finish and in a two gang white decor insert. Each Whirlwind MIPAI plate is a standalone two channel mixer with one balanced mic level input via a 3 pin female XLR and a stereo aux input connected through a 3.5mm TRS unbalanced jack that is summed to mono. Separate level controls are provided for each input and deliver enough gain to drive modern power amplifiers to full output. A bass cut switch is provided on the mic input for reducing rumble and handling noise. An additional line input appears on the rear panel screw terminals for connecting up to two more MIPAI plates in a daisy chain type configuration, i.e., output of the first to the input of the second, output of the second to the input of the third and output of the third to the processing electronics. All three plates are summed together and all six level controls can adjust their respective inputs up to the maximum output drive level of +22dB. If inputs from multiple MIPAI plates are used at the same time caution must be taken to keep the
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
