Description
C-Box (Converter, V-Mount) accepts HDMI and 3G HD-SDI input, selectable via a switch on the operator's side, and simultaneously outputs three channels of HD-SDI and two of HDMI. The device draws power internally from the male V-Mount plate attached and passes power through to the camera via the female V-Mount plate on the other side. The male V-Mount plate has an additional D-Tap output for accessory power. Each HD-SDI output is independently reclocked and carries the same strength as the original signal. LED indicators are located on the operator's side to show status of power and signal. 5V Mini USB port on operator's side for powering wireless transmitters like Paralinx, IDX Cam-Wave, etc. This version attaches between any V-Mount plate and V-Mount battery. For example, the C-Box (HD-SDI, V-Mount) can fit between the Blueshape BV090 Battery and the WC V-Mount (Epic/Scarlet). Another example would be attaching it between the Blueshape BV090 Battery and the WC V-Mount (BMC). Overview: - Power input via V-Mount battery, 12-24 VDC .5A - Attaches between standard V-Mount battery and camera V-Mount plate - LED indicator for Signal and Power on operator side - 5V mini USB output for accessory power - 1/4-20 holes on bottom allow for attachment of rod clamps, cheeseplates, and other accessories - Re-clocks standard SD, HD and 3G SDI data rates - Auto bypasses non-standard SDI rates from 20Mbit/s to 3Gbit/s - Passes SDI embedded audio and ancillary data - Operating Temperature 0 to +40 C - Operating Humidity 0 to 90% Non-Condensing Signal Information - Data Types: SMPTE 259/292/424 - Data Rates: 19 Mbit/s through 3.0 Gbit/s - Re-clocking Data Rates: 270 Mbit/s, 1.485 Gbit/s, 2.97 Gbit/s - Input/Output Return Loss: > 15dB @ HD, > 12dB @ 3G - Input Level: 800 mV P-P +/- 20% - Input Impedance: 75 Ohms +/- 1% - Output Level: 800 mV P-P +/- 5% - Output Impedance: 75 Ohms +/- 1% - Output Jitter: < 0.2 UI

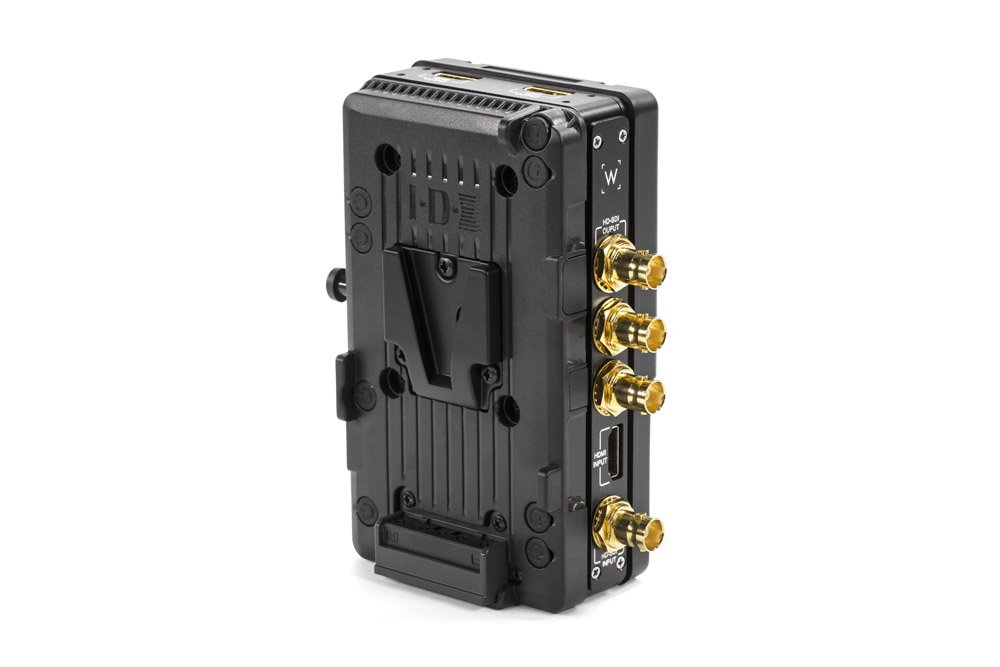

Wooden Camera - C-Box (Converter, V-Mount)
Current Price
$699
Average
$699
Min Price
$699
Max Price
$699
Description
C-Box (Converter, V-Mount) accepts HDMI and 3G HD-SDI input, selectable via a switch on the operator's side, and simultaneously outputs three channels of HD-SDI and two of HDMI. The device draws power internally from the male V-Mount plate attached and passes power through to the camera via the female V-Mount plate on the other side. The male V-Mount plate has an additional D-Tap output for accessory power. Each HD-SDI output is independently reclocked and carries the same strength as the original signal. LED indicators are located on the operator's side to show status of power and signal. 5V Mini USB port on operator's side for powering wireless transmitters like Paralinx, IDX Cam-Wave, etc. This version attaches between any V-Mount plate and V-Mount battery. For example, the C-Box (HD-SDI, V-Mount) can fit between the Blueshape BV090 Battery and the WC V-Mount (Epic/Scarlet). Another example would be attaching it between the Blueshape BV090 Battery and the WC V-Mount (BMC). Overview: - Power input via V-Mount battery, 12-24 VDC .5A - Attaches between standard V-Mount battery and camera V-Mount plate - LED indicator for Signal and Power on operator side - 5V mini USB output for accessory power - 1/4-20 holes on bottom allow for attachment of rod clamps, cheeseplates, and other accessories - Re-clocks standard SD, HD and 3G SDI data rates - Auto bypasses non-standard SDI rates from 20Mbit/s to 3Gbit/s - Passes SDI embedded audio and ancillary data - Operating Temperature 0 to +40 C - Operating Humidity 0 to 90% Non-Condensing Signal Information - Data Types: SMPTE 259/292/424 - Data Rates: 19 Mbit/s through 3.0 Gbit/s - Re-clocking Data Rates: 270 Mbit/s, 1.485 Gbit/s, 2.97 Gbit/s - Input/Output Return Loss: > 15dB @ HD, > 12dB @ 3G - Input Level: 800 mV P-P +/- 20% - Input Impedance: 75 Ohms +/- 1% - Output Level: 800 mV P-P +/- 5% - Output Impedance: 75 Ohms +/- 1% - Output Jitter: < 0.2 UI
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
we're introducing a new product called the cbox wireless hdmi protector it's a device that attaches to the top of the cbox converter and it protects your HDMI transmitter from being bumped or broken now you can see we have one on our cbox dtap the para links arrow is plugged in and we have it being powered by the USB through the slot on the side if you're going to grab the handle or anything like that and you accidentally bump your transmitter this is firmly locked in place so no damage will happen to either the cbox or the transmitter it also works with the v mountain gold mount versions which we have here you can see that we have the protector attached on top and we're ready to install our transmitter to slide it into place and then you're ready to attach the usb on the side these products are all available in our store now
