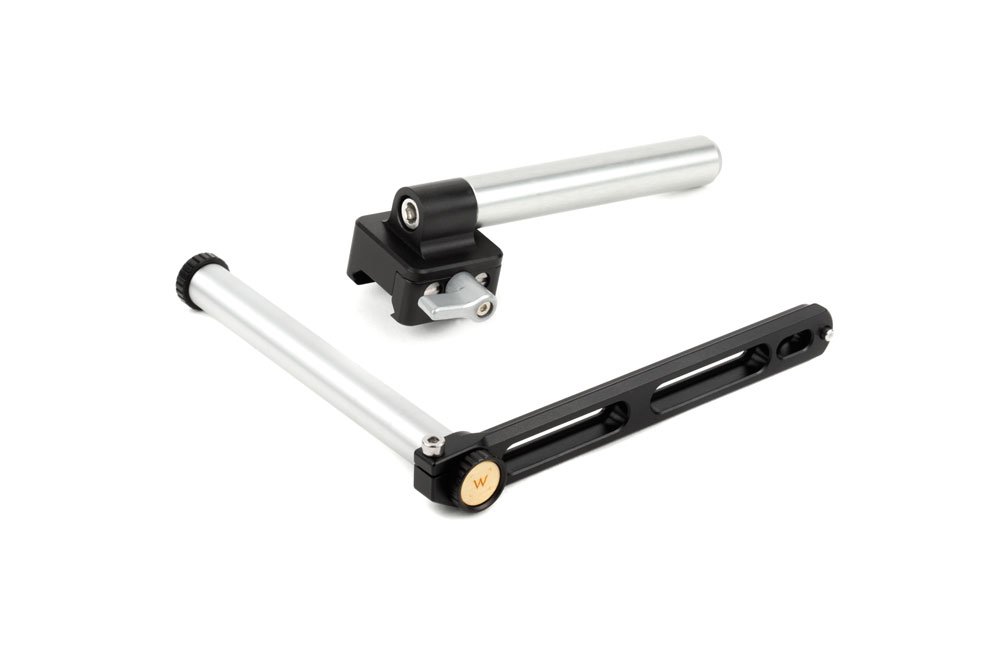

Wooden Camera - UVF Mount (FS7, No Clamp)

in this video we're going to talk about the UVF mount options for the sony fs7 the camera includes its own viewfinder mount and mounting system however the operation of the viewfinder mount can lead you to having an off-axis horizon as well as the positioning function is a little bit stiff and difficult to use so what we've done is offer the replacement for a uvf mount onto the camera body to install our system will first remove the viewfinder unlock the thumb screw and then slide the viewfinder out next we'll remove the rod clamp then we'll use our allen key to remove the sideways rod now that we've replaced the sideways rod with our NATO rail system or ready to work on the viewfinder first we'll flip this over and loosen the screw on the bottom next we'll install the adapter onto the side of the viewfinder you'll want to make sure that this portion is parallel with the side of the vie
