TIPS:
- This camera have 4 MODE for video output: 1080p AHD, 1080p CVI, 1080p TVI and 960H CVB
- It supports 1080p TVI DVR,1080p CVI DVR, 1080p AHD DVR, and 960H (D1.700TVL, 800TVL)DVR. It does not support NVR.
- Camera resolution is 1080P. If connect to 720P DVR, it won't work.
- If you want to remote view by App, you need to use the APP of your DVR
Trouble shooting:
If IMAGE normal in the day while vague or being interfered by horizontal stripes at night .
It is the reason that POWER is not enough or POWER cable is too long.
PLS Change power supply or shorten power cable.If NO image , if it is Wrong connection to the video cable, you need reconnect;
if power gets problem,you need change power supply;if having not connected to power supply,you need to plug in.
Specification
Resolution: 2MP (1920x1080)
IR Distance: 24pcs LEDs view 65 feet
Lens: 3.6mm Lens
Video Output:HD-TVI(1080P),(AHD/TVI/CVI/CVBS)
Day &Night: Support (ICR)
Frame Rate: 25fps (50HZ), 30fps (60Hz)
Weatherproof for indoor/outdoor
Power Supply: 12 Volts DC / 1000mA (NOT included but required)
Operation Environment: ﹣20℃~ 55℃，10% ~ 90%humidity
Package included:

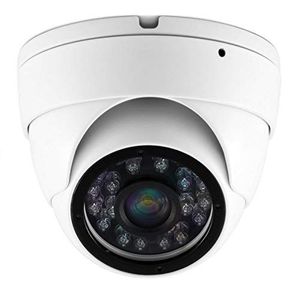

1 x Dome camera
1 x Bag of mounting screws
1 x Manual
1 x Drill template
Warranty:
60 days money-back & 24-months warranty& Within 24 hours response.
When you are not satisfied with ourproduct, please don't hesitate to contact us for a replacement or full refund
