Description

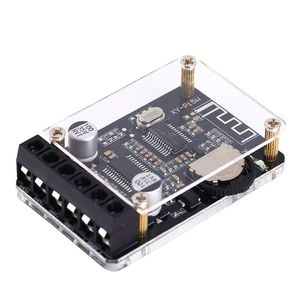

XY-P15W is a high power Bluetooth audio receiver module. Built-in amplifier enable it to connect to speakers directly, without extra amp board. It is an ideal and inexpensive way to DIY wireless Bluetooth speakers or improve your old speakers.
Parameters:
Model: XY-P15W
Material: Semiconductor+RF-4+Acrylic
Work Voltage: DC 8V-24V(Module will be damaged if input voltage is over 26V.)
Communication distance: 15meter(Max)
Channel: Dual channel
Work Temperature: -40℃~85℃
Work Humidity: 0%~95%RH
Module Size: 50*35*14mm
Output Power Test(at 1KHz):
Output power 16W*2 @ 12V 4ohm
Output power 10W*2 @ 12V 8ohm
Output power 15W*2 @ 16V 8ohm
Output power 20W*2 @ 20V 8ohm
Output power 30W*2 @ 24V 8ohm (Better to install an extra heat sink)
Applicable speaker (30W~150W):
4ohm at 8V~12V
8ohm at 8V~24V
16ohm at 8V~24V
Note:
The amplifier board should be as far away as possible from the WIFI signal (router) to avoid signal interference. Also please don't use too long speaker wires for the same reason.
Module will be damaged if input voltage is over 26V. Input voltage don't be over 12V with 4ohm speaker and don't be over 24V with 8ohm speaker.
It is recommended to use a power supply of 2A or higher.
It is recommended to use a speaker over 30W to prevent the speakers from overheating. Please add an extra heat sink if your speakers are overheated.
Please tear off the protective film from the acrylic boards before using.
Welcome to contact us if you have any question.
Package:
XY-P15W Stereo Bluetooth amp board x 1
Acrylic shell x 2
Copper column x 2
Screws x8
Parameters:
Model: XY-P15W
Material: Semiconductor+RF-4+Acrylic
Work Voltage: DC 8V-24V(Module will be damaged if input voltage is over 26V.)
Communication distance: 15meter(Max)
Channel: Dual channel
Work Temperature: -40℃~85℃
Work Humidity: 0%~95%RH
Module Size: 50*35*14mm
Output Power Test(at 1KHz):
Output power 16W*2 @ 12V 4ohm
Output power 10W*2 @ 12V 8ohm
Output power 15W*2 @ 16V 8ohm
Output power 20W*2 @ 20V 8ohm
Output power 30W*2 @ 24V 8ohm (Better to install an extra heat sink)
Applicable speaker (30W~150W):
4ohm at 8V~12V
8ohm at 8V~24V
16ohm at 8V~24V
Note:
The amplifier board should be as far away as possible from the WIFI signal (router) to avoid signal interference. Also please don't use too long speaker wires for the same reason.
Module will be damaged if input voltage is over 26V. Input voltage don't be over 12V with 4ohm speaker and don't be over 24V with 8ohm speaker.
It is recommended to use a power supply of 2A or higher.
It is recommended to use a speaker over 30W to prevent the speakers from overheating. Please add an extra heat sink if your speakers are overheated.
Please tear off the protective film from the acrylic boards before using.
Welcome to contact us if you have any question.
Package:
XY-P15W Stereo Bluetooth amp board x 1
Acrylic shell x 2
Copper column x 2
Screws x8
Bluetooth Receiver Board, Icstation High Power Stereo Audio Amplifier Digital Amp Module 12V 24V 10/15/20/50W with Case for DIY Wireless Speaker
Current Price
$9.99
Average
$9.99
Min Price
$9.99
Max Price
$9.99
Description
XY-P15W is a high power Bluetooth audio receiver module. Built-in amplifier enable it to connect to speakers directly, without extra amp board. It is an ideal and inexpensive way to DIY wireless Bluetooth speakers or improve your old speakers.
Parameters:
Model: XY-P15W
Material: Semiconductor+RF-4+Acrylic
Work Voltage: DC 8V-24V(Module will be damaged if input voltage is over 26V.)
Communication distance: 15meter(Max)
Channel: Dual channel
Work Temperature: -40℃~85℃
Work Humidity: 0%~95%RH
Module Size: 50*35*14mm
Output Power Test(at 1KHz):
Output power 16W*2 @ 12V 4ohm
Output power 10W*2 @ 12V 8ohm
Output power 15W*2 @ 16V 8ohm
Output power 20W*2 @ 20V 8ohm
Output power 30W*2 @ 24V 8ohm (Better to install an extra heat sink)
Applicable speaker (30W~150W):
4ohm at 8V~12V
8ohm at 8V~24V
16ohm at 8V~24V
Note:
The amplifier board should be as far away as possible from the WIFI signal (router) to avoid signal interference. Also please don't use too long speaker wires for the same reason.
Module will be damaged if input voltage is over 26V. Input voltage don't be over 12V with 4ohm speaker and don't be over 24V with 8ohm speaker.
It is recommended to use a power supply of 2A or higher.
It is recommended to use a speaker over 30W to prevent the speakers from overheating. Please add an extra heat sink if your speakers are overheated.
Please tear off the protective film from the acrylic boards before using.
Welcome to contact us if you have any question.
Package:
XY-P15W Stereo Bluetooth amp board x 1
Acrylic shell x 2
Copper column x 2
Screws x8
Parameters:
Model: XY-P15W
Material: Semiconductor+RF-4+Acrylic
Work Voltage: DC 8V-24V(Module will be damaged if input voltage is over 26V.)
Communication distance: 15meter(Max)
Channel: Dual channel
Work Temperature: -40℃~85℃
Work Humidity: 0%~95%RH
Module Size: 50*35*14mm
Output Power Test(at 1KHz):
Output power 16W*2 @ 12V 4ohm
Output power 10W*2 @ 12V 8ohm
Output power 15W*2 @ 16V 8ohm
Output power 20W*2 @ 20V 8ohm
Output power 30W*2 @ 24V 8ohm (Better to install an extra heat sink)
Applicable speaker (30W~150W):
4ohm at 8V~12V
8ohm at 8V~24V
16ohm at 8V~24V
Note:
The amplifier board should be as far away as possible from the WIFI signal (router) to avoid signal interference. Also please don't use too long speaker wires for the same reason.
Module will be damaged if input voltage is over 26V. Input voltage don't be over 12V with 4ohm speaker and don't be over 24V with 8ohm speaker.
It is recommended to use a power supply of 2A or higher.
It is recommended to use a speaker over 30W to prevent the speakers from overheating. Please add an extra heat sink if your speakers are overheated.
Please tear off the protective film from the acrylic boards before using.
Welcome to contact us if you have any question.
Package:
XY-P15W Stereo Bluetooth amp board x 1
Acrylic shell x 2
Copper column x 2
Screws x8
