Description
If you have any question, please feel free to contact us, we will try our best to help you.
Description
The Antistatic Air Gun is a highly efficient static elimination device that rapidly blows a large amount of positive and negative ions generated by the ion generating device to the area where the static electricity needs to be removed, and neutralizes the electrostatic charge accumulated on the object. At the same time, the high-speed ion gas stream blows the dust particles attracted by electrostatic attraction and prevents them from attracting the dust particles again.
Technical parameters:
Primary volts: 110V AC
Secondary output volts: 4 kV AC
Secondary short cct. Current: 2 mA
VA rating: 3VA
.No. of load circuits: 2
Fuse: 0.2A
Maximum load: ≤5m*2
Working Environment:0-45°C, R.H<80%
Working Air Pressure: 0-7 bar(recommend:2-3 bar)
Air Output: 3.5 CFM @ 0.7 bars, 5.3 CFM@3.5bar
Switch/lamp: With indicating lamp and switch
Test Results
Test Voltage: 1KV-100V
Operating Voltage: 4.0kV
Ambient Temperature: 22 ℃
Test Distance: 300mm 600mm 900mm
Decay Time: positive 0.4s 0.5s 1.1s negative 0.4s 0.5s 0.9s
Offset voltage: Positive -23V -18V +14V Negative -29V -16V +17V
Physical parameters:
Diameter of air hose : 6mm
HV cable length:2.7m
Size of H.V.Transformer: 200mm(L)×135mm(W)×89mm(H)
Approx weight: 2.8kg
Package includes:
1* ionizer gun
1* high voltage generator
1* air hose
Note: This product needs to be used with your air compressor

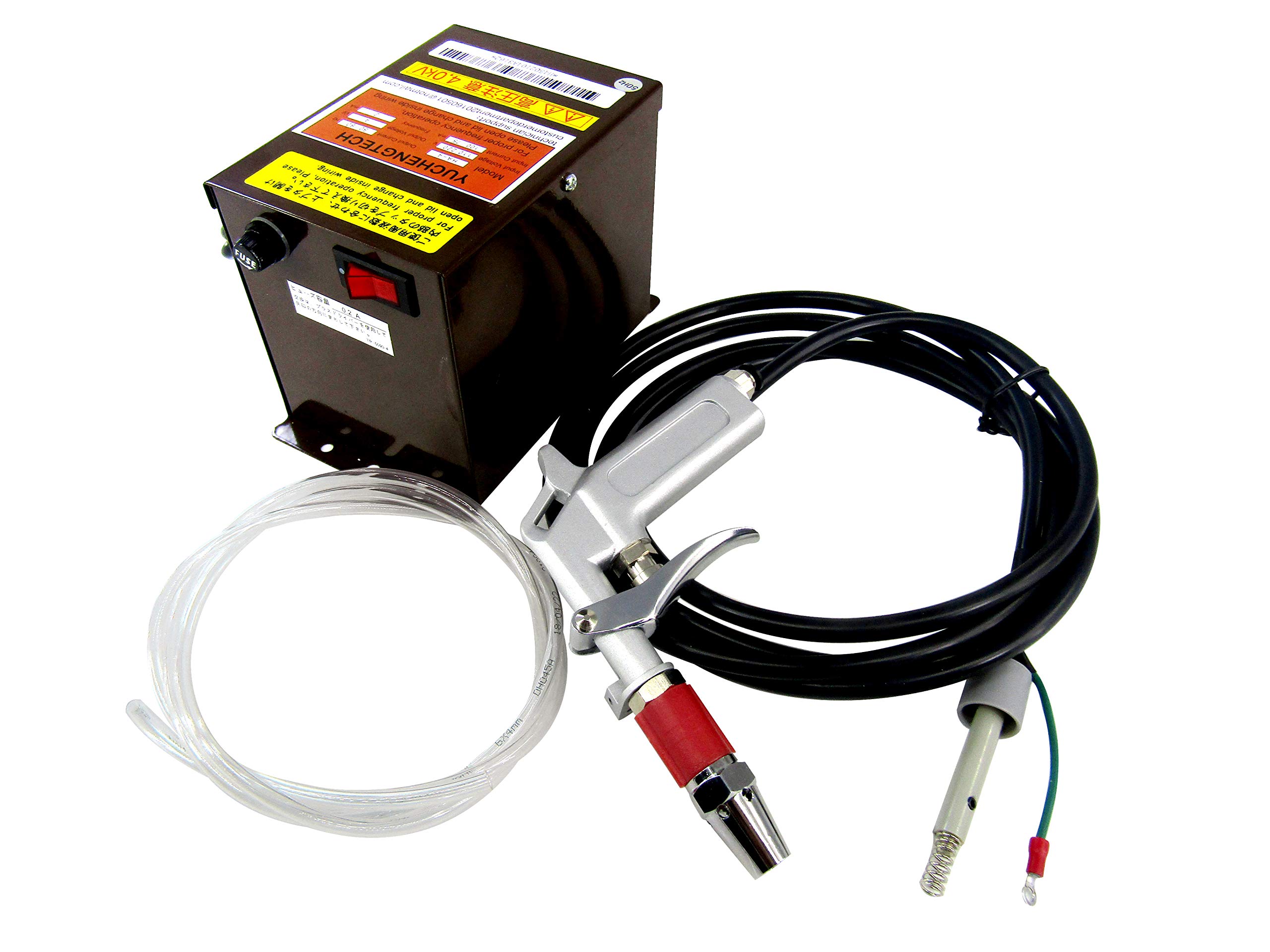

YUCHENGTECH Ionizing Air Gun Static Gun Antistatic Sprayer Electrostatic Eliminator + High Voltage Generator 110V
Price is below average
Current Price
$139
Average
$143.74
Min Price
$125.74
Max Price
$189.97
Price dynamics
3%
Description
If you have any question, please feel free to contact us, we will try our best to help you.
Description
The Antistatic Air Gun is a highly efficient static elimination device that rapidly blows a large amount of positive and negative ions generated by the ion generating device to the area where the static electricity needs to be removed, and neutralizes the electrostatic charge accumulated on the object. At the same time, the high-speed ion gas stream blows the dust particles attracted by electrostatic attraction and prevents them from attracting the dust particles again.
Technical parameters:
Primary volts: 110V AC
Secondary output volts: 4 kV AC
Secondary short cct. Current: 2 mA
VA rating: 3VA
.No. of load circuits: 2
Fuse: 0.2A
Maximum load: ≤5m*2
Working Environment:0-45°C, R.H<80%
Working Air Pressure: 0-7 bar(recommend:2-3 bar)
Air Output: 3.5 CFM @ 0.7 bars, 5.3 CFM@3.5bar
Switch/lamp: With indicating lamp and switch
Test Results
Test Voltage: 1KV-100V
Operating Voltage: 4.0kV
Ambient Temperature: 22 ℃
Test Distance: 300mm 600mm 900mm
Decay Time: positive 0.4s 0.5s 1.1s negative 0.4s 0.5s 0.9s
Offset voltage: Positive -23V -18V +14V Negative -29V -16V +17V
Physical parameters:
Diameter of air hose : 6mm
HV cable length:2.7m
Size of H.V.Transformer: 200mm(L)×135mm(W)×89mm(H)
Approx weight: 2.8kg
Package includes:
1* ionizer gun
1* high voltage generator
1* air hose
Note: This product needs to be used with your air compressor
