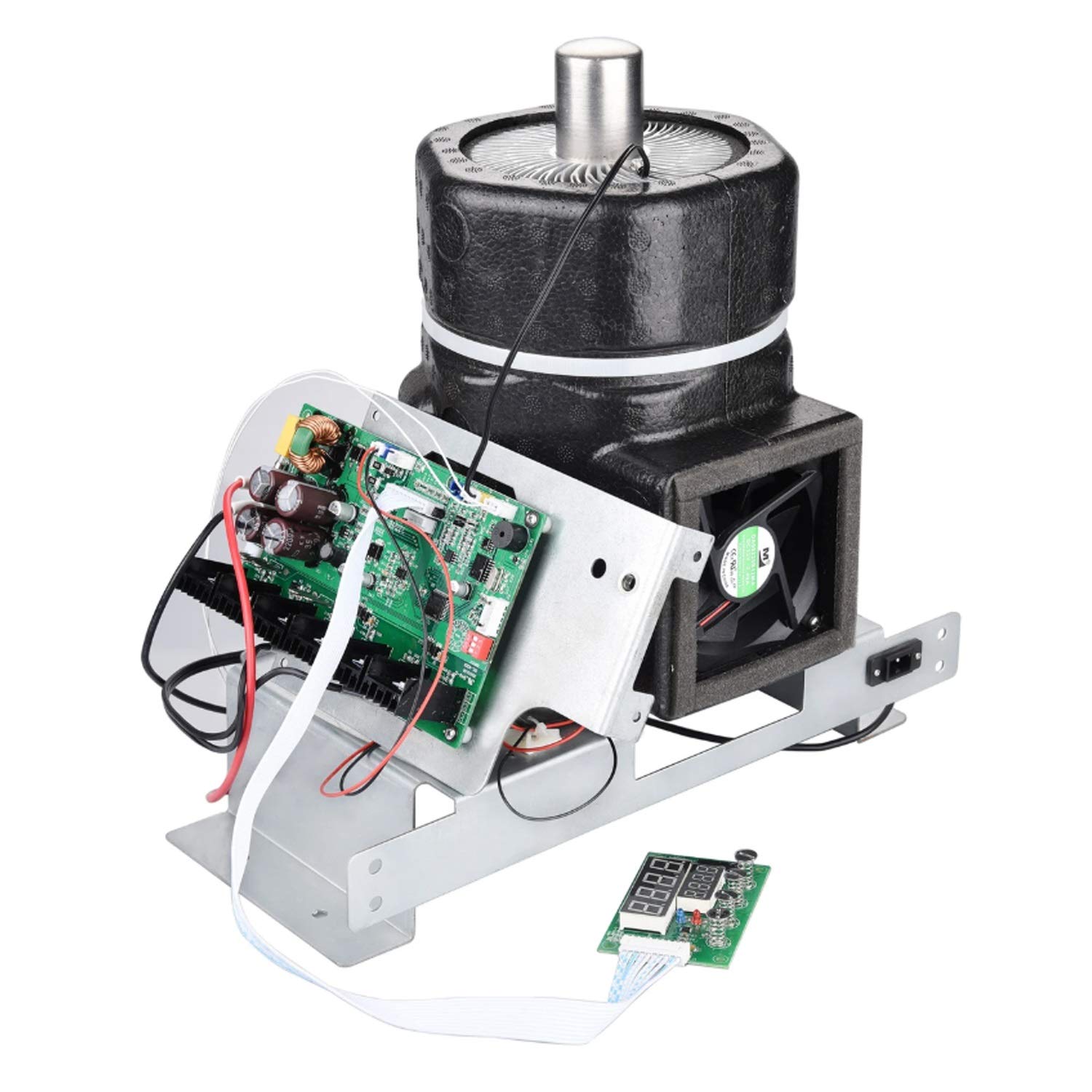

Cooling type：Free Piston Stirling Cooler (FPSC)

Capacity: 80W

Coolant: Helium=3.0 g

Cooler N.W: 2.2kg (4.8lbs)

Installation: Any direction is workable

Coolant injection pressure: 3.0Mpa（@20°）

Power Input: DC24V 6A(RMS)

Drive Power: 79.2HZ AC2.0~8.5V 7A（RMS）

Working Lifetime: Continuously operation ≥10,000hrs

Working Condition: 0℃~+60℃ (32℉~140℉)

Temp Range in Cold Fin (Cold part): -170℃~ 0℃

Temp Range in Heat Sink (Hot part): 0℃~+ 60℃

Drive Frequency：80.0HZ

Motor Type：Linearly Motor

Insulation Grade：E

Insulation Resistance：DC500V ＞10MΩ

Withstand Voltage：1250V/3S ≤0.5mA

Power Input：DC24V 6A(RMS)

Noise：≤48dB

Vibration：≤10um

Shock Resistance：10G

Shell Compressive Strength：Under 15MPa, No Leaks

Protection Device：Impedance Protection

Advantages:

Oil-Free, Ultra Quiet, Vibration-Free

Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)

For liquid freezing application, 30% at least energy savings

For air cooled application, 50% at least energy savings

MagLev technology better reduce system redundancy

<;b>Applications<;/b>：Deep Fast Freezing, Pharmaceutical, Bio-tec & Medical, Electronics Cooling, Microclimate Cooling, Medical Device Cooling, Chemical, Energy, Foods and Logistics (Included above applications but not limited)
