Description

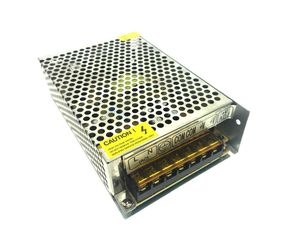

Single output, aluminum housing, AC to DC power supply. It has seven insert bits.
With overload and short circuit protection.
Mainly used for CCTV camera, LED flexible strip, LED decorative lighting, building lighting, stage lighting, LED display and home appliances.
Specifications:
✪.Product Name: Regulated Switching Power Supply
✪.Input: AC100-120V 60Hz, AC200-260V 50Hz; Output: DC 5V 12A 60W;
✪.Screw Terminal Number: 7; Fix Screw Hole Diameter: 2.5mm(0.1 inch)
✪.Working temperature: -40~65C; Storage Temperature: -20C~60C
✪.Humidity: 20%~90%RH Non-Condensation
✪.Start Rise Hold Time:200ms 100ms 30ms
✪.Size: 6.02 inch x 3.8 inch x 1.6 inch/153mm*97mm*41mm(L*W*H)
✪.Material: Metal, Electronic Parts; Main Color: Silver Tone; Net Weight : 339g
✪. Safety Compliance: FCC / CE/ ROHS
Connection:
✈. L, N: AC power input
✈. COM: DC power output -
✈. V: DC power output +
✈. +V / ADJ: Adjust the output voltage (15%)
Package Contents:
1 x LED Switching Power Supply
Tips:
1.Please use indoors
2.High Voltage inside ,do not remove the cover. Qualified service personnel only.
With overload and short circuit protection.
Mainly used for CCTV camera, LED flexible strip, LED decorative lighting, building lighting, stage lighting, LED display and home appliances.
Specifications:
✪.Product Name: Regulated Switching Power Supply
✪.Input: AC100-120V 60Hz, AC200-260V 50Hz; Output: DC 5V 12A 60W;
✪.Screw Terminal Number: 7; Fix Screw Hole Diameter: 2.5mm(0.1 inch)
✪.Working temperature: -40~65C; Storage Temperature: -20C~60C
✪.Humidity: 20%~90%RH Non-Condensation
✪.Start Rise Hold Time:200ms 100ms 30ms
✪.Size: 6.02 inch x 3.8 inch x 1.6 inch/153mm*97mm*41mm(L*W*H)
✪.Material: Metal, Electronic Parts; Main Color: Silver Tone; Net Weight : 339g
✪. Safety Compliance: FCC / CE/ ROHS
Connection:
✈. L, N: AC power input
✈. COM: DC power output -
✈. V: DC power output +
✈. +V / ADJ: Adjust the output voltage (15%)
Package Contents:
1 x LED Switching Power Supply
Tips:
1.Please use indoors
2.High Voltage inside ,do not remove the cover. Qualified service personnel only.
YXQ Regulated Power Supply DC 5V 12Amp 60W Switching AC 110V/220V Transformer Converterfor LED Strip Lights, CCTV, Radio, Computer Project (DC 5V 12A 60W)
