Description

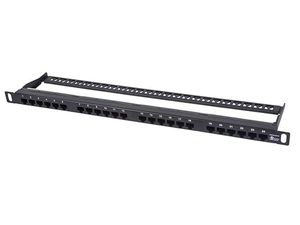

As any system administrator knows, server rack space is expensive. Make the most out of your limited rack space by using this high-density, SpaceSaver 19" Half-U UTP Cat6 24-port Patch Panel from Monoprice! This unshielded patch panel is designed for Category 6 UTP cable connections. It is rated for 500 MHz bandwidth and 1000 Mbps (Gigabit) data throughput. It features 24 RJ45 ports with Dual IDC headers situated 90° relative to the ports. The IDC headers are terminated using a 110-type punch down tool. The panel is compatible with 22-26 AWG solid or stranded solid-state and network cables. The panel includes color coded wiring diagrams for both T568A and T568B installations. The patch panel measures 19" wide on the face and 17 1/4" wide on the body. It is 3 15/16" deep and 7/8" high. The frame features 24 C-shaped keyholes for cable strain relief. The packaging includes a combination wire stripper/110-type punch down tool, 24 3" zip ties, 2 rack mount screws, and 2 plastic washers. Note: Over torquing the rack mount screws can cause damage to the mounting ears. The plastic washers are intended to be used with the rack mount screws to reduce the chance of over tightening the installation. Features: High-density panel, packs 24 RJ45 ports into half the space of ordinary panels, Suitable for use with solid or stranded 22-26AWG wire, Krone-type punch-down termination with built-in strain relief bar, Gold plated RJ45 contacts, Ports clearly labeled on both front and back, Includes a color coded wiring diagram for both T568A and T568B terminations, Meets and exceeds ANSI/TIA-568-C.2, ISO/IEC 11801, and EN 50173-1 specifications, Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases, and UL certified in Canada and the United States.

Monoprice Half-U UTP Cat6 Patch Panel - 24 Ports - 19 Inch | Dual IDC - SpaceSaver

Price is below average

Get price

Current Price

$35.96

Average

$37.21

Min Price

$23.31

Max Price

$91.26

Price dynamics

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

would you like to learn how to terminate a putz panel fast and easy stay tuned hello and welcome to Poseidon tech I'm tell and today we will show you a fast way to terminate a patch panel using Pandits mini contact modules for this installation you will need the following tools one screwdriver one clipper one cable stripper and ponder its termination tool now let's take a look at the mini comb Jack module the tack module has two parts the wire cap and the module housing first prepare the UTP cat6 cable by removing the cable jacket with a cable stripper [Music] to remove the separator with the clipper I am using connection type B so for this Jack move to the right side the brown and blue pair and to the left side of the green and orange pair in the front side of the wire cup insert brown and green pair [Music] and in the backside blue and orange pear [Music] secure the cable by pressing
