Description

This CB/10Meter Base Station Antenna Combo kit contain two great items in one, you will get 100 Ft high quality mini8 cable and well reviewed Sirio GPE Antenna, Base station antenna tunable from 26.4 to 29Mhz and 10m band.Strong and easy to install, they allow very good links!

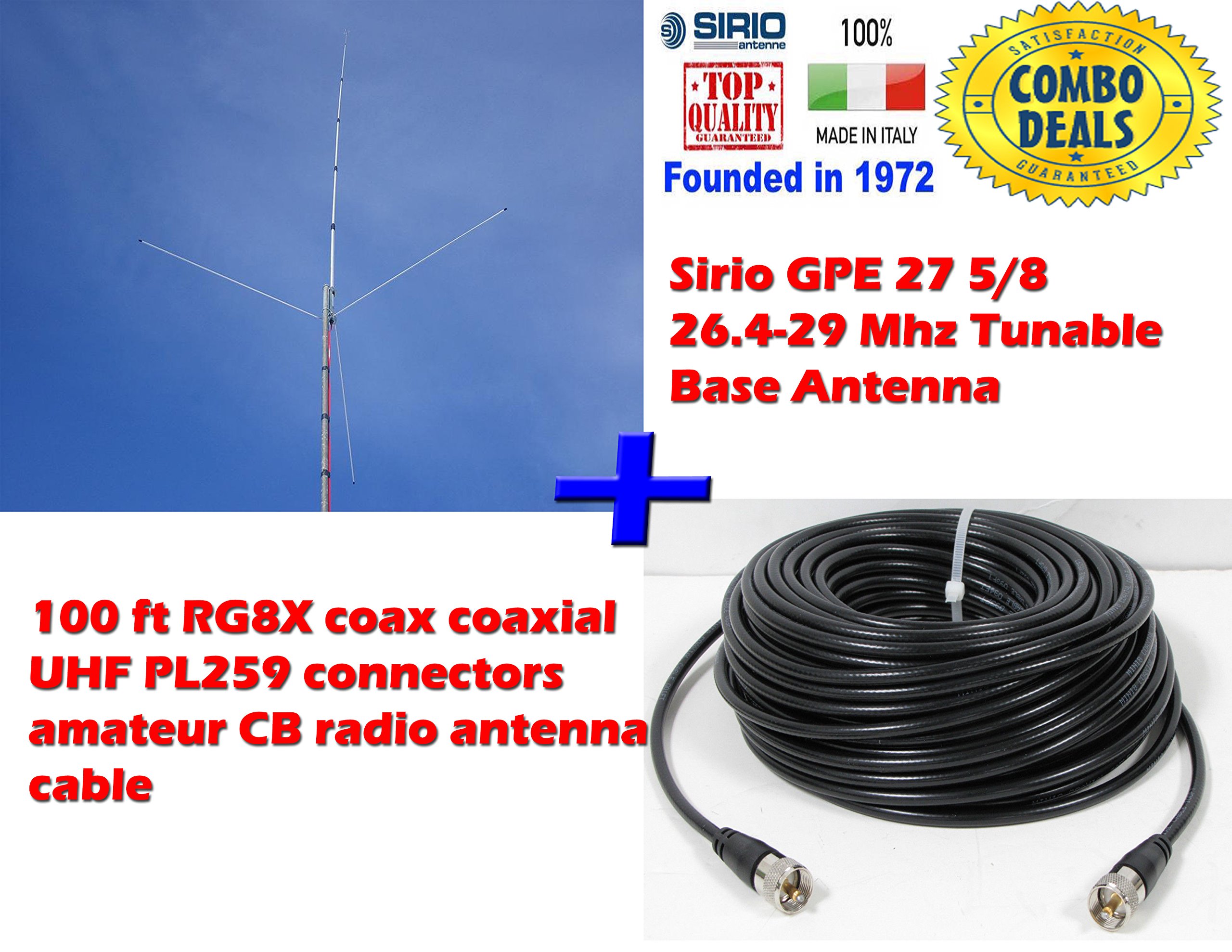

1) Sirio GPE 27 5/8 26.4-29 Mhz Tunable Base Antenna

Base station antenna tunable from 26.4 to 29Mhz and 10m band. They are made of anti-corodal aluminium tubes and supplied with polythene jointing sleeves to guarantee a perfect waterproofing. Strong and easy to install, they allow very good links!

Base station antenna, Omnidirectional

Tunable by acting on the whip length

Low radiation angle for excellent DX

Coil protected by transparent cover

Whip equipped whit waterproof jointing sleeve

Made of aluminium alloy 6063 T-832

Protection from static discharges DC-Ground

Type: GPE 27 5/8: 5/8λ ground plane

Frequency range: tunable from 26.4 to 29.0 MHz

Impedance: 50Ω

Radiation (H-plane): 360° omnidirectional

Polarization: linear vertical

Gain: GPS 27 1/2: 0 dBd, 2.15 dBi

Bandwidth - SWR ≤ 2: ≥ 1600 KHz

SWR at res. freq.: ≤ 1.3

Max. power: 250 Watts (CW) continuous ; 750 Watts (PEP) short time

Feed system / position: Transformer DC-ground / base

Connector: UHF-female

Materials: Aluminium, Steel, Copper, Nylon

Wind resistance: 130 Km/h

Wind load: GPE 27 5/8: 188 N at 150 Km/h

Wind surface: GPE 27 5/8: 0.13 m²

Height (approx.): 5950 mm

Weight (approx.): 2500 gr

Radial length (approx.): GPE 27 5/8 1320 mm

Mounting mast: Ø 35-42 mm

2) Taurus 100Ft RG8X Mini8 Coax Cable with PL 259 connectors - High Quality Cable!

100 FT Length

50 ohm impedance

(2) PL259 Male Connectors

Heavy Duty Super Flexible Gray Jacket

3000 Watt Power Handling

95% Copper Shield

Sirio GPE 27 5/8 26.4-29 Mhz Tunable Base Antenna 100Ft RG8x Mini Coax

Get price

Current Price

$99.5

Average

$99.5

Min Price

$99.5

Max Price

$99.5

Price dynamics

Description

1) Sirio GPE 27 5/8 26.4-29 Mhz Tunable Base Antenna

Base station antenna, Omnidirectional

Tunable by acting on the whip length

Low radiation angle for excellent DX

Coil protected by transparent cover

Whip equipped whit waterproof jointing sleeve

Made of aluminium alloy 6063 T-832

Protection from static discharges DC-Ground

Type: GPE 27 5/8: 5/8λ ground plane

Frequency range: tunable from 26.4 to 29.0 MHz

Impedance: 50Ω

Radiation (H-plane): 360° omnidirectional

Polarization: linear vertical

Gain: GPS 27 1/2: 0 dBd, 2.15 dBi

Bandwidth - SWR ≤ 2: ≥ 1600 KHz

SWR at res. freq.: ≤ 1.3

Max. power: 250 Watts (CW) continuous ; 750 Watts (PEP) short time

Feed system / position: Transformer DC-ground / base

Connector: UHF-female

Materials: Aluminium, Steel, Copper, Nylon

Wind resistance: 130 Km/h

Wind load: GPE 27 5/8: 188 N at 150 Km/h

Wind surface: GPE 27 5/8: 0.13 m²

Height (approx.): 5950 mm

Weight (approx.): 2500 gr

Radial length (approx.): GPE 27 5/8 1320 mm

Mounting mast: Ø 35-42 mm

2) Taurus 100Ft RG8X Mini8 Coax Cable with PL 259 connectors - High Quality Cable!

100 FT Length

50 ohm impedance

(2) PL259 Male Connectors

Heavy Duty Super Flexible Gray Jacket

3000 Watt Power Handling

95% Copper Shield

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
