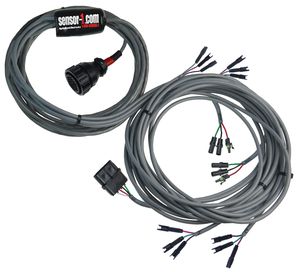

Sensor-1 HC23W04 - 4-Row Harness for Cyclo II Monitor with 3-Wire Mate-N-Lock Connectors

micro mate in lock three millimeter connector system tyco electronics welcome to this training module on micro mate and lock three millimeter connector system this training module covers the performance and requirements for the application of the micro maten lock connector family the connector has an integral positive latching housing to prevent connector unmating the polarized housings help to prevent connector mismating the connector utilizes standard micro maten lock contacts the side latch design allows for an ultra low profile the micro maten lock three millimeter connector system is a wire to wire and wire to board connector system with contacts on a three millimeter center line both single row and dual row configurations are available crimp snap in pin and receptacle contacts are used to terminate 24 to 20 and 30 to 26 american wire gauge wire plug and receptacle housings allow w
