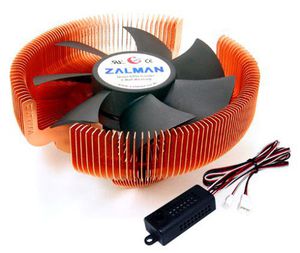

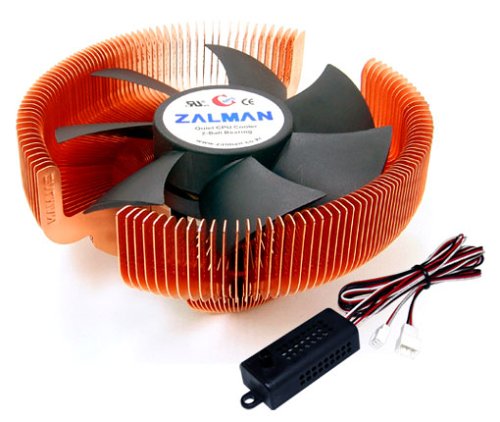

The large, 120 mm fan inside the cooler's FHS maximizes cooling performance by providing sufficient airflow over a large area, cooling not only the CPU, but the VGA card, Northbridge, FET, and RAM--even at slow rotation speeds. The supplied adjustable fan speed controller (Fan Mate 2) lets you control fan noise as well as performance.

The maximum weight for a cooler (fan) is specified as 450g (.99 pounds) for Intel Socket 775/478 and AMD Socket 754/939/940. Special care should be taken when moving a computer equipped with a cooler that exceeds the relevant weight limit (the CNPS7700 weighs 918g). Zalman Tech is not responsible for any damage that occurs when moving a computer.

What's in the Box
Fan, heat sink assembly, 4 grips (2 each for S-type and L-type), 4 bolts, thermal grease, fan speed controller (Fan Mate 2), double-sided tape (for installing Fan Mate 2), cable for Fan Mate 2, a user's manual (in English and Korean), 1 clip support for Socket 775, 1 backplate for Socket 775, 4 clip-support fixing bolts, 2 clip supports for Socket 478, 2 nipples, 1 backplate for AMD64, and 1 set of washers.

Note: No motherboard components with a height greater than 39mm (1.53-inch), as well as the PSU, disk drives, VGA card, and RAM should be present within a 68mm (2.68 inch) radius from the center of the CPU.
