Description

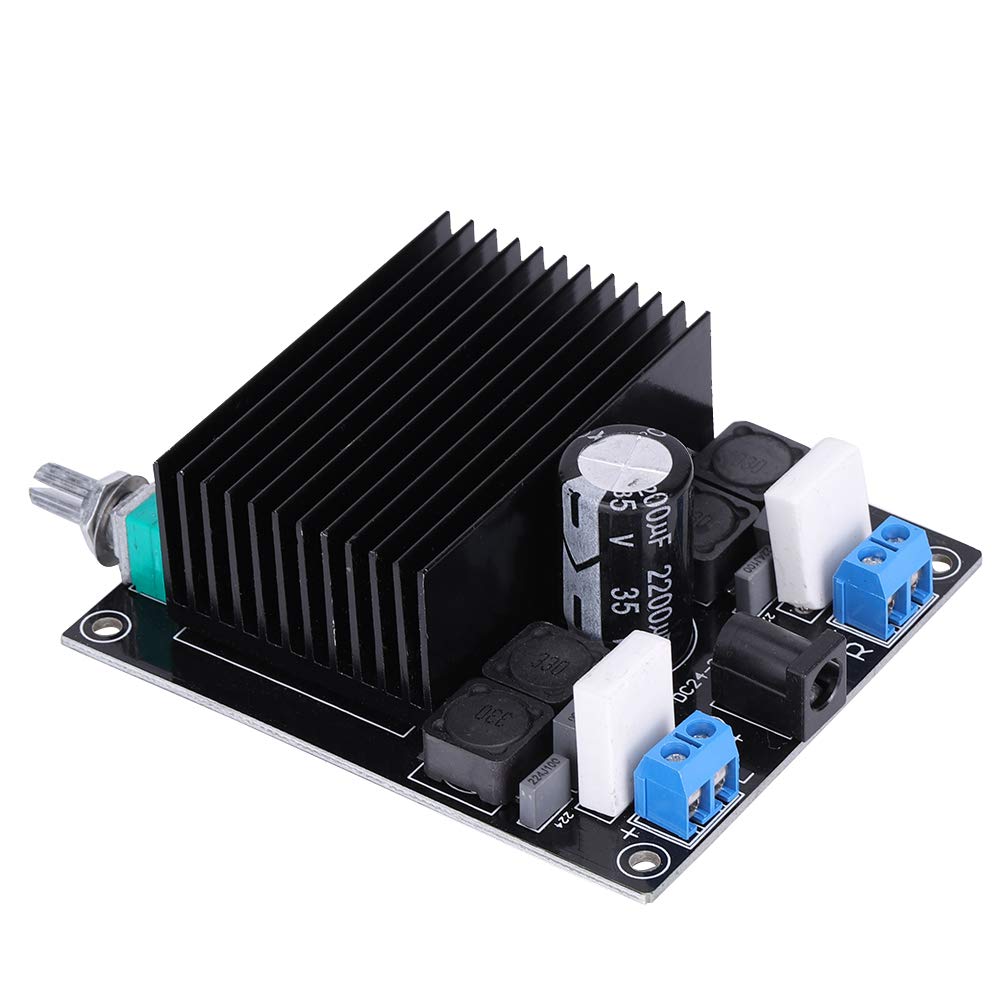

The TDA7498 is the first 100W+100W amplifier on the market, which support for monolithic integrated analog, and features logic and high voltage functions. Compared to other Class D amplification processes, the BCD6S ratio of STMicroelectronics is higher than that of other Class D amplification processes. At the same time, it also reduces crosstalk and improves sound quality. In addition, the BCD6S high-power output circuit integrates NMOS and PMOS complementary transistors, eliminating the bootstrap capacitors and cathode load diodes required for the old process. The board has a distortion (THD+N) of less than 0.01%, which
provides a higher quality listening experience.
Specifications:
Type: Amplifier Board
Material: PCB
Working method: Class D
Quiescent current: 50mA
Work efficiency: 90%
Rated output power: 2 ¡Á 100W
Frequency response: 20Hz - 20KHz
Working voltage: DC20V - DC36V
Recommended Electricity Supply voltage: DC32V
Maximum output current: 7A
Weight: Approx. 129g
Size: Approx. 8.5 ¡Á 7.5 ¡Á 3cm / 3.3 ¡Á 3 ¡Á 1.2in
Package Included:
1 ¡Á Amplifier Board
Note:
Please allow slight error due to manual measurement. Thanks for your kind understanding.
