Description

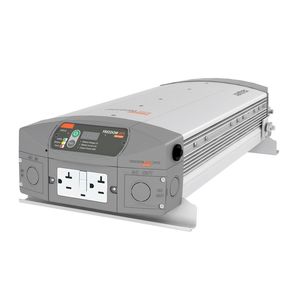

Xantrex 807-2055 Freedom HFS 2055 Inverter/Charger; 2000 watts continuous AC power; Powerful fast charging 55 amp, 12 Vdc multi-stage charger; 2X continuous power surge for demanding loads

The new generation Freedom HFS is equipped with quick-connect AC terminals, ignition control capability and programmable smart battery management logic. The quick-connect AC terminal on both AC input and output enables incredibly easy installation. The ignition control feature minimizes unintended battery drain.

Key Features

Cold temperature performance down to - 20°C for the harsh winter environments
Configurable Ignition control that helps to minimize battery drain
Dead battery charging down to 0 Vdc
Quick connect AC terminal block for fast and reliable installation
Detachable remote panel for convenient system status monitoring
Overload, over temperature, under/over voltage protection

Specifications

Inverter
Surge rating: 4000W
Output current (continuous): 16.9A
Output voltage range: 110 - 125 Vac
Output frequency regulation: 60 Hz
Output wave form: True sine wave
No-load input power (producing output voltage): < 10 W
Off mode current draw (display off): < 4mA
Input opearating voltage range: 10.5 - 16.5 Vdc
Power draw in stand-by mode: < 10W
Operating voltage range: 10.5 - 16.5 Vdc
Charger
AC input operating voltage range: Vac 90 - 140 Vac
AC transfer relay: 30A
Transfer time: < 40ms
Battery voltage (nominal): 12 Vdc
AC input (max. charge): 16 AAC
AC receptables: 20A GFCI
General
Operating temperature range: -4°F - 122°F
Storage temperature range: -40°F - 158°F
Dimensions (HxWxL): 4.7" x 9.4" x 19.2"
Weight: 14.4 lbs

Xantrex 807-2055 Freedom HFS 2055 Inverter/Charger; 2000 watts continuous AC power; Powerful fast charging 55 amp, 12 Vdc multi-stage charger; 2X continuous power surge for demanding loads

Get price

Current Price

$876.03

Average

$767.45

Min Price

$472.8

Max Price

$876.03

Price dynamics

12%

Description

Xantrex 807-2055 Freedom HFS 2055 Inverter/Charger; 2000 watts continuous AC power; Powerful fast charging 55 amp, 12 Vdc multi-stage charger; 2X continuous power surge for demanding loads

Key Features

Cold temperature performance down to - 20°C for the harsh winter environments
Configurable Ignition control that helps to minimize battery drain
Dead battery charging down to 0 Vdc
Quick connect AC terminal block for fast and reliable installation
Detachable remote panel for convenient system status monitoring
Overload, over temperature, under/over voltage protection

Specifications

Inverter
Surge rating: 4000W
Output current (continuous): 16.9A
Output voltage range: 110 - 125 Vac
Output frequency regulation: 60 Hz
Output wave form: True sine wave
No-load input power (producing output voltage): < 10 W
Off mode current draw (display off): < 4mA
Input opearating voltage range: 10.5 - 16.5 Vdc
Power draw in stand-by mode: < 10W
Operating voltage range: 10.5 - 16.5 Vdc
Charger
AC input operating voltage range: Vac 90 - 140 Vac
AC transfer relay: 30A
Transfer time: < 40ms
Battery voltage (nominal): 12 Vdc
AC input (max. charge): 16 AAC
AC receptables: 20A GFCI
General
Operating temperature range: -4°F - 122°F
Storage temperature range: -40°F - 158°F
Dimensions (HxWxL): 4.7" x 9.4" x 19.2"
Weight: 14.4 lbs

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

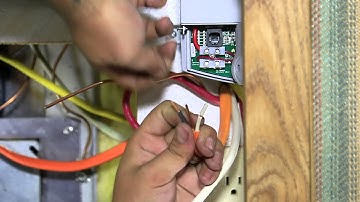

you hi I'm William this is Austin and Mike we're with green country RV doctor today we're going to go through a step-by-step process of converting a trailer with a converter charger over to a inverter charger with zant racks new freedom hf 1055 series inverter alright today we're going to take most your trailers run a standard converter charge random that's typical in today's industry however new trend is to go in and upgrade from a converter charger to an inverter charger giving you more flexibility when dry camping in order to run outlets microwave TV things of that nature so today we're going to remove this converter charger we're going to go ahead and install the new Zen Trax freedom hhf 10:55 inverter charger in its place during this process it's going to require this is some one part of the inverter panel or the breaker panel we're going to reroute some electrical to and from this
