Description

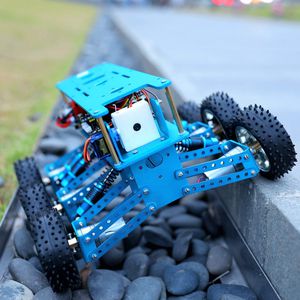

Yahboom 6WD off-road smart robot is a high performance mobile robot based on Arduino UNO with WIFI camera module . Equipped with multifunctional 6WD expansion board, all kinds of high quality modules, aluminum alloy chassis and large capacity battery, it can move neatly and quickly on the indoor floors, complex streets, outdoor lawns, inclined surfaces, stairs and so on. This robot supports two independent remote control methods: App remote control by Android mobile and the WIFI remote control by Android mobile.We also reserve some holes in the external structure for users to expand by themselves. This will give you a more interesting installation and handling experience than any other robot kit.
Details
Motor
Voltage: 12V
Power: 2W
Reduction ratio: 1:45
Unload current: 60mA
No Load Speed: 160RPM
Load moment: 0.95Kg.cm
Load speed:140RPM
Load current: 200mA
Locked rotor torque:9kg.cm
Stall current: 2.2A
Speed reducer length: 24mm
Shaft diameter: 4mm D Type
Expansion board
Supply voltage:12.6V ~ 24V
On-board voltage output: 3.3V/5V
Charging port: 5.5/2.1 DC port
Power solution: LM2596, XL4005,Reverse connect protection, Over discharge protection, low voltage protection
Motor driver IC: AM2857 IC*6
Motor driver module: BST-Driver*3
Servo driver IC: PCA9685 IIC
Motor speed driver IC: PCA9685 IIC or IO driver
Motor interface: supports 6 DC motors; 4 speed measuring motor
Remote control: app control;WIFI control
Output: Buzzer
Input: 4 Separate button; interface; IIC port
Support controller: Arduino/ 51/STM32/ Raspberry Pi
Robot
Weight: 2148g
Size: 28*28*16cm
Vertical span height: 10cm
Details
Motor
Voltage: 12V
Power: 2W
Reduction ratio: 1:45
Unload current: 60mA
No Load Speed: 160RPM
Load moment: 0.95Kg.cm
Load speed:140RPM
Load current: 200mA
Locked rotor torque:9kg.cm
Stall current: 2.2A
Speed reducer length: 24mm
Shaft diameter: 4mm D Type
Expansion board
Supply voltage:12.6V ~ 24V
On-board voltage output: 3.3V/5V
Charging port: 5.5/2.1 DC port
Power solution: LM2596, XL4005,Reverse connect protection, Over discharge protection, low voltage protection
Motor driver IC: AM2857 IC*6
Motor driver module: BST-Driver*3
Servo driver IC: PCA9685 IIC
Motor speed driver IC: PCA9685 IIC or IO driver
Motor interface: supports 6 DC motors; 4 speed measuring motor
Remote control: app control;WIFI control
Output: Buzzer
Input: 4 Separate button; interface; IIC port
Support controller: Arduino/ 51/STM32/ Raspberry Pi
Robot
Weight: 2148g
Size: 28*28*16cm
Vertical span height: 10cm
