★Product parameters: ★
Brand: ZWYJ
Voltage:1600V
Current:200A
V(FO): 0.8V
Repetitive Peak Reverse Voltage V(RRM): 1600V
solation Voltage V(ISO):2500V
Max. Junction Temperature: 150℃
Size: 80*40*27mm
★Features: ★
1. Electrical insulation between the chip and the substrate, AC voltage 2500V
2. International standard packaging;
3. Vacuum + hydrogen filling protection welding technology;
4. Welded structure, excellent temperature characteristics and power cycle capability;
5. Easy to install and easy to maintain.
6. Small size and light weight;
7. The working junction temperature reaches 150C.
8. Low forward pressure drop
★Product application: ★
1. DC current of equipment and equipment; 2. Input rectifier power supply of PWM converter; 3. DC motor excitation power supply; 4. Switching power supply input rectifier; 5. Soft start capacitor charging; 6. Electric drive and auxiliary current. 7. Inverter welding machine; 8. Charging DC power supply.
★ Product packaging: ★
1×MDQ200-16

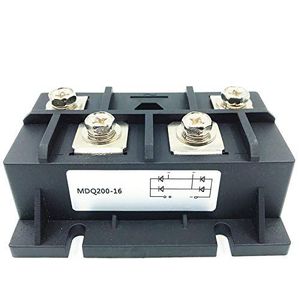

ZWYJ MDQ200A1600V Bridge Rectifier 200A 1600V MDQ Series Single Phase, Full Wave 200Amp 1600 Volt Electronic Silicon
