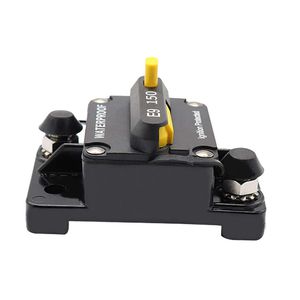

- High Amp Switchable, Waterproof, Flush-Mount Circuit Breaker
- Part Number:F433-150A , cross to 185150F, CB185
- Surface Mount
- Rated Current: 150A
- Rated Voltage: 48VDC Maximum
- Interrupt Capacity: 3000A @ 48 Vdc
- Housing is thermalplastic UL rated 94V0
- Splash and dust proof at IP67 grade
- Operating Temperature: -32°C to 82 °C (-25°F to 180 °F)
- Storage Temperature: -34°C to 149 °C (-30°F to 300 °F)
- Stud Size: ¼"-28
- Meet S.A.E. J1625, J1171, UL1500 (Ignition Protected)
- Surface Mount, protective stud insulator included.
Use:
- Mainly used in ships, electric current overload protection car.
effect:
- To prevent excessive current, the protection of electrical appliances.
-
Operation method:
- Switch type power socket: convenient operation, circuit breaker, don't tear down,as long as click on their own disconnect to normal use, put off above the red button
Package Includes:
1x 150 Amp Circuit Breaker
